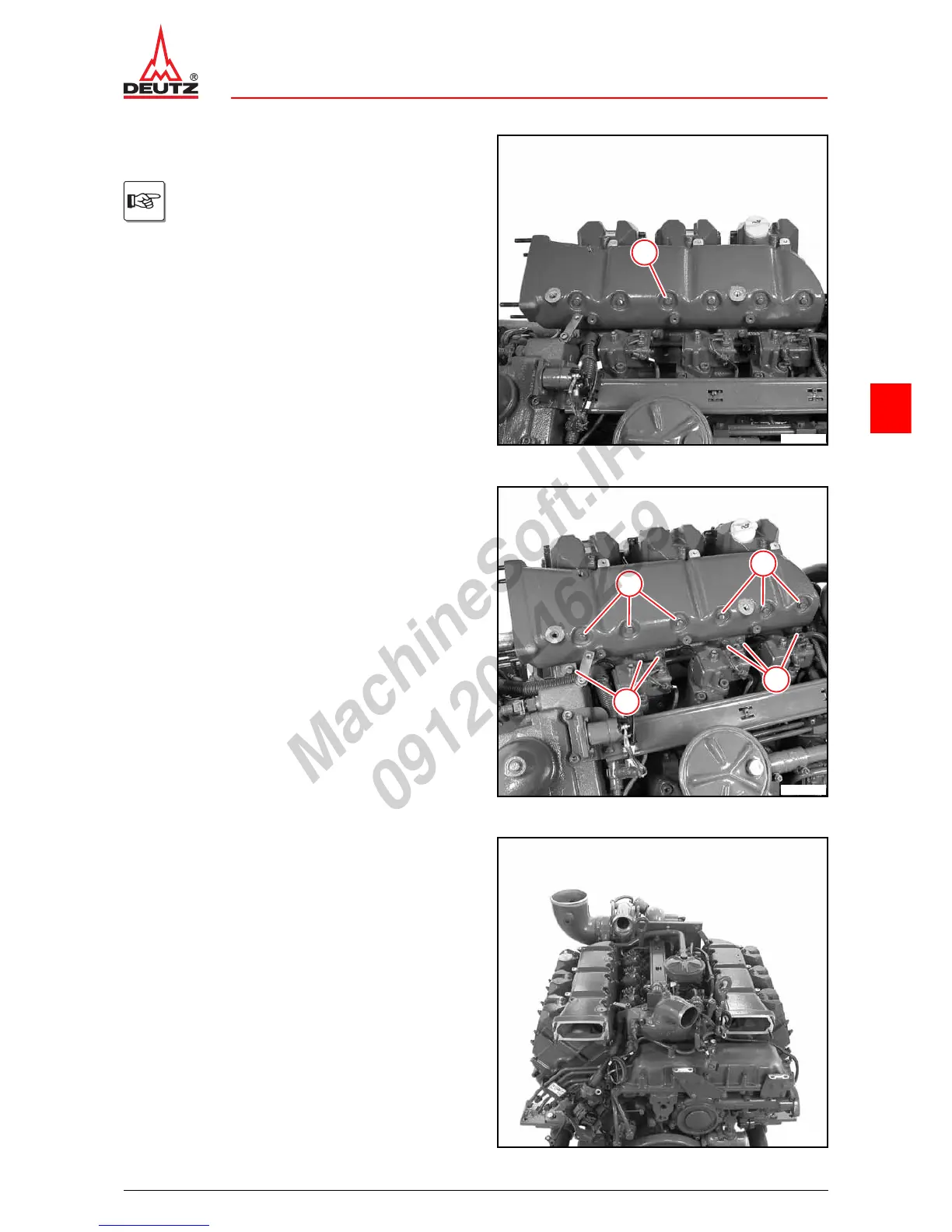

Deutz TCD 2015 - Page 439

© 06/2006 8207-001
3/4
TCD 2015
Exhaust system/Charging
W 06-07-03
6
z Insert charge air pipe.
z Fasten all screws (1).
Screw length:
M8 x 100 mm
1
© 40569-0
z Tighten screws (1) alternately with special wrench.
 A06 030
1
1
1
1
© 40573-0
z Installing high pressure pipes (A-bank)
 W 07-03-01
z Install connecting pipe.
 W 06-02-05
© 40552-0
