Deutz TCD 2015 - Removing Injection Pump Camshaft

© 06/2006 8189-001
1/32
TCD 2015
Engine control
W 04-05-07
6
Removing and installing injection pump camshaft
Commercial available tools:
– Depth-measuring
appliance
– Magnetic measuring stand
Special tools:
– Turn-over gear . . . . . . . . . . . . . . 100350
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– Counter support . . . . . . . . . . . . . 144150
– Packing compound
DEUTZ DW 48
– Locking agent
DEUTZ DW 72
– W 01-02-02
– W 02-02-02
– W 03-08-01
– W 03-09-04
– W 04-06-03
– W 05-07-03
– W 06-06-04
– W 07-04-01 . . . . . . . . . . . . (Cylinder A1)
– W 07-04-01 . . . . . . . . . . . . (Cylinder
A2-B3)
– W 07-06-04
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.

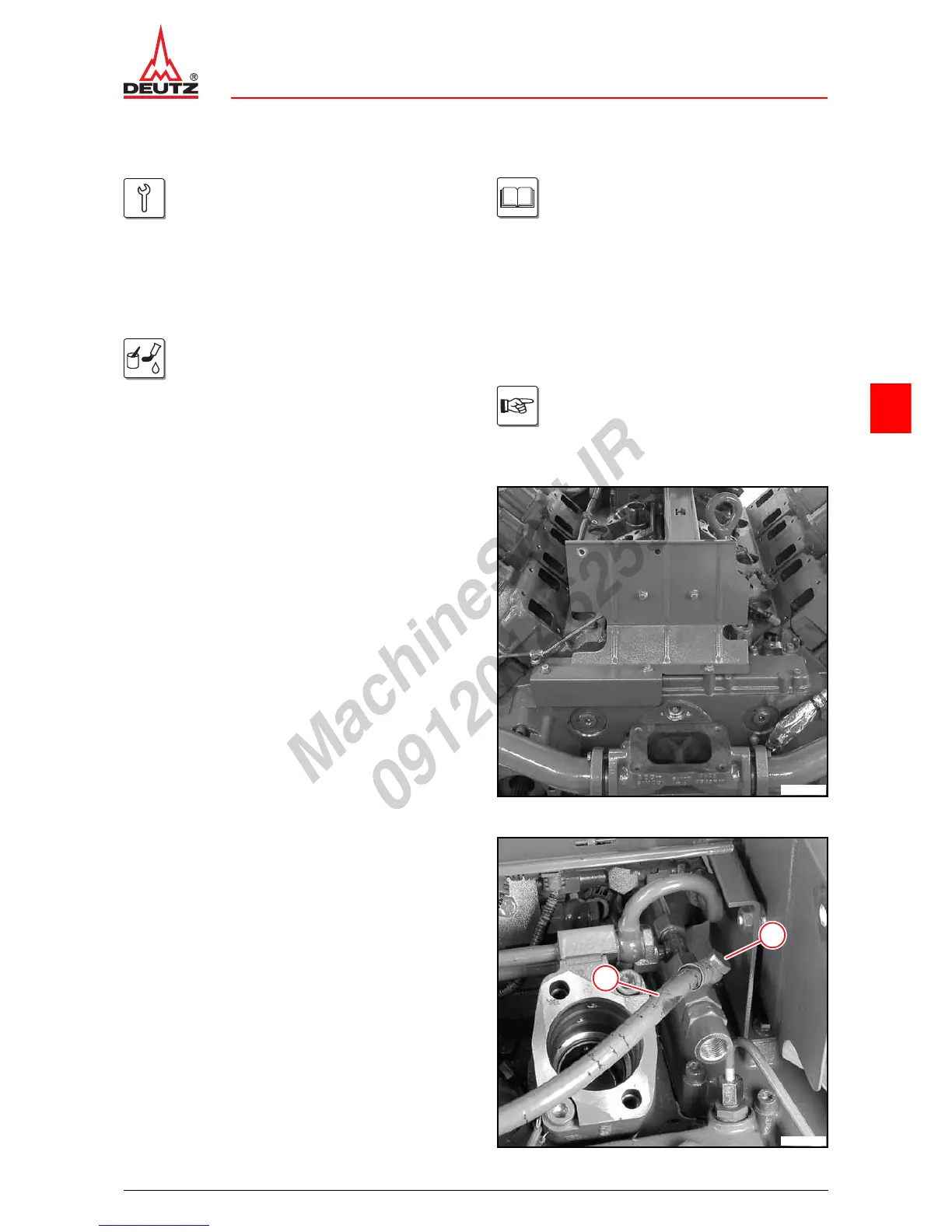

Removing injection pump camshaft
z Remove impulse transmitter (camshaft).
 W 05-07-03
z Remove injection pumps (cylinder A1).
 W 07-04-01
z Remove injection pumps (cylinder A2-B3).
 W 07-04-01
z Remove genset support.
 W 03-08-01
z Remove turbocharger.
 W 06-06-04
© 40497-0
z Unscrew hollow screw (1).
z Place fuel hose (2) to one side.
z Remove sealing rings.
1
2
© 40458-0
