TCD 2015
Lube oil system
W 08-11-10
© 06/2006 8234-001
4/10
6

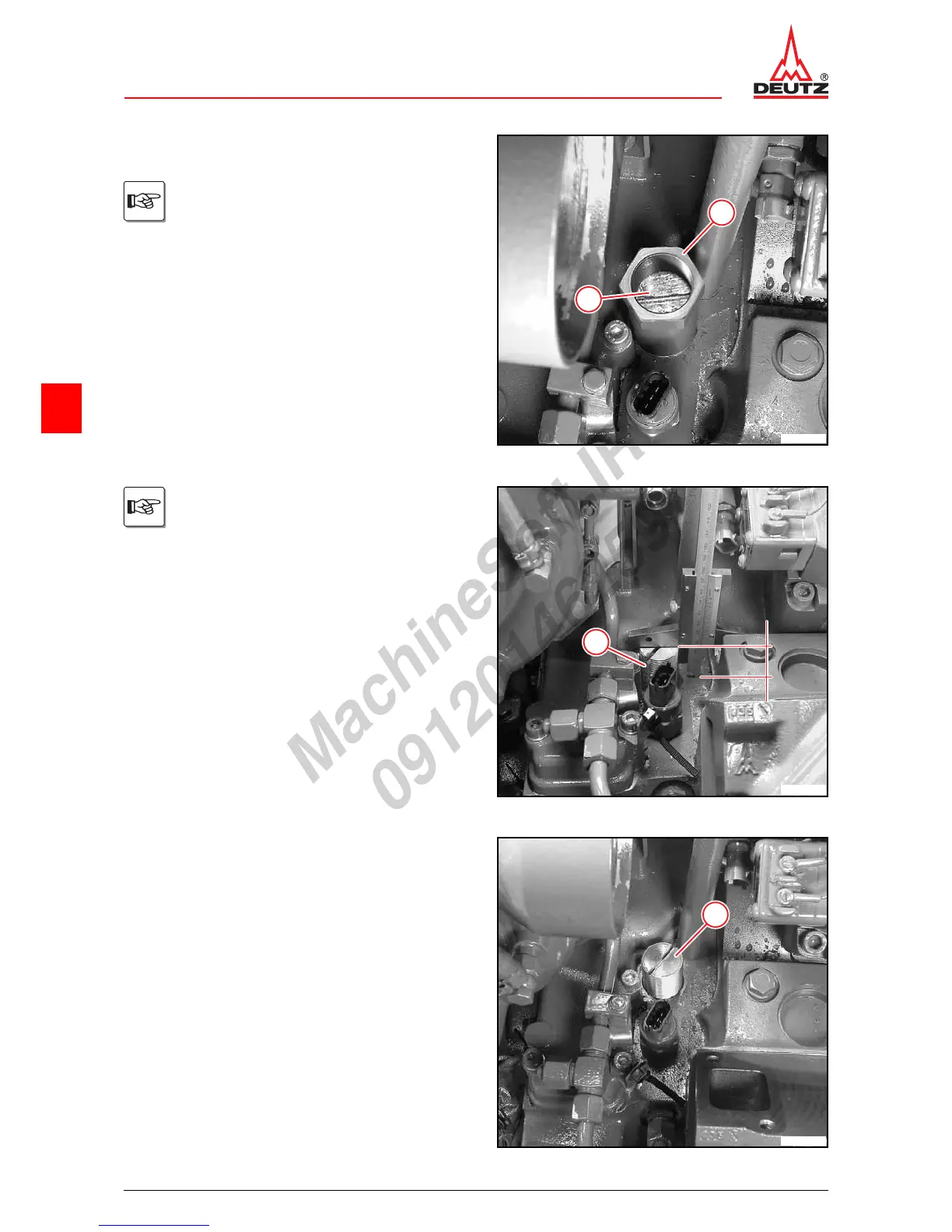

z Unscrew valve housing (1).
z Remove sealing ring.
Do not move the adjusting bolt (2).
1
2
© 40866-0
z Measure overhang (X) from adjusting bolt (1) to
crankcase with the depth measuring appliance.
z Note measured value.
If the same oil pressure is to be set again,
the overhang of the adjusting bolt must be
measured before removing.
1
