TCD 2015
Crankcase
W 03-03-08
© 06/2006 8177-001
2/2
6

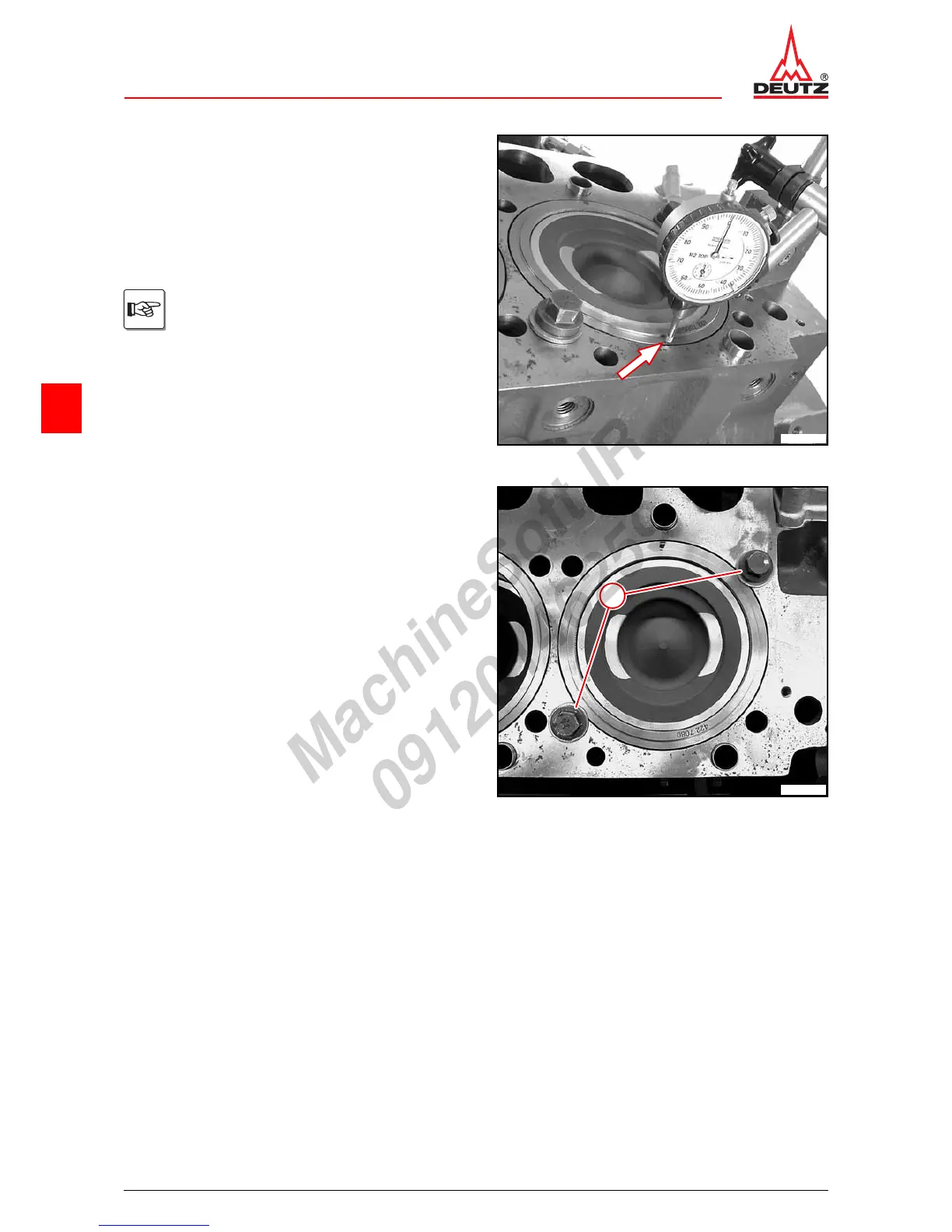

z Loosen magnetic measuring stand.
z Turn the magnetic measuring stand carefully until the
stylus is touching the sealing surface of the cylinder
liner (arrow).
z Mount magnetic measuring stand.
z Read off measured value.
P03 39
Make measurements at at least 3 other
points on the cylinder liner.
© 45761-0
z Unscrew screws (1).
z Install cylinder head.
W 01-04-04
1
© 45424-0
