© 06/2006 8176-001
5/6
TCD 2015
Crankcase
W 03-03-02
6

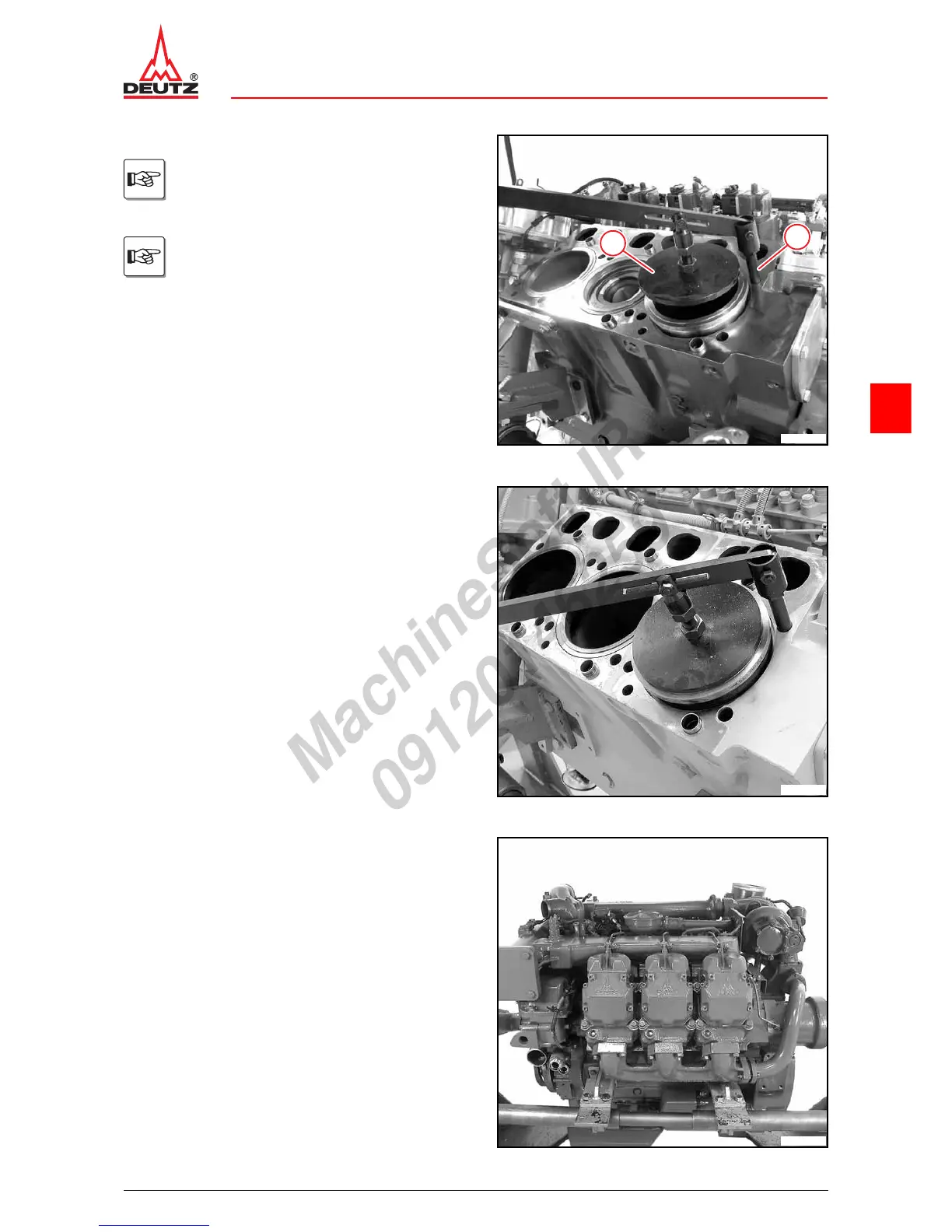

z Screw in retaining pins (1).
z Mount pressure plate (2) on cylinder liner.
Screw retaining pins into a threaded bore
for screws of the cylinder head.
Make sure the pressure plate is fit evenly.
2
1
© 42232-1
z Press in cylinder liner to stop.
z Remove the assembly device.
© 42233-1
z Check the overhang of the cylinder liner.
W 03-03-08
z Install piston and connecting rod.
W 02-09-03
© 40583-0
