TCD 2015
Crankcase
W 03-03-02
© 06/2006 8176-001
2/6
6

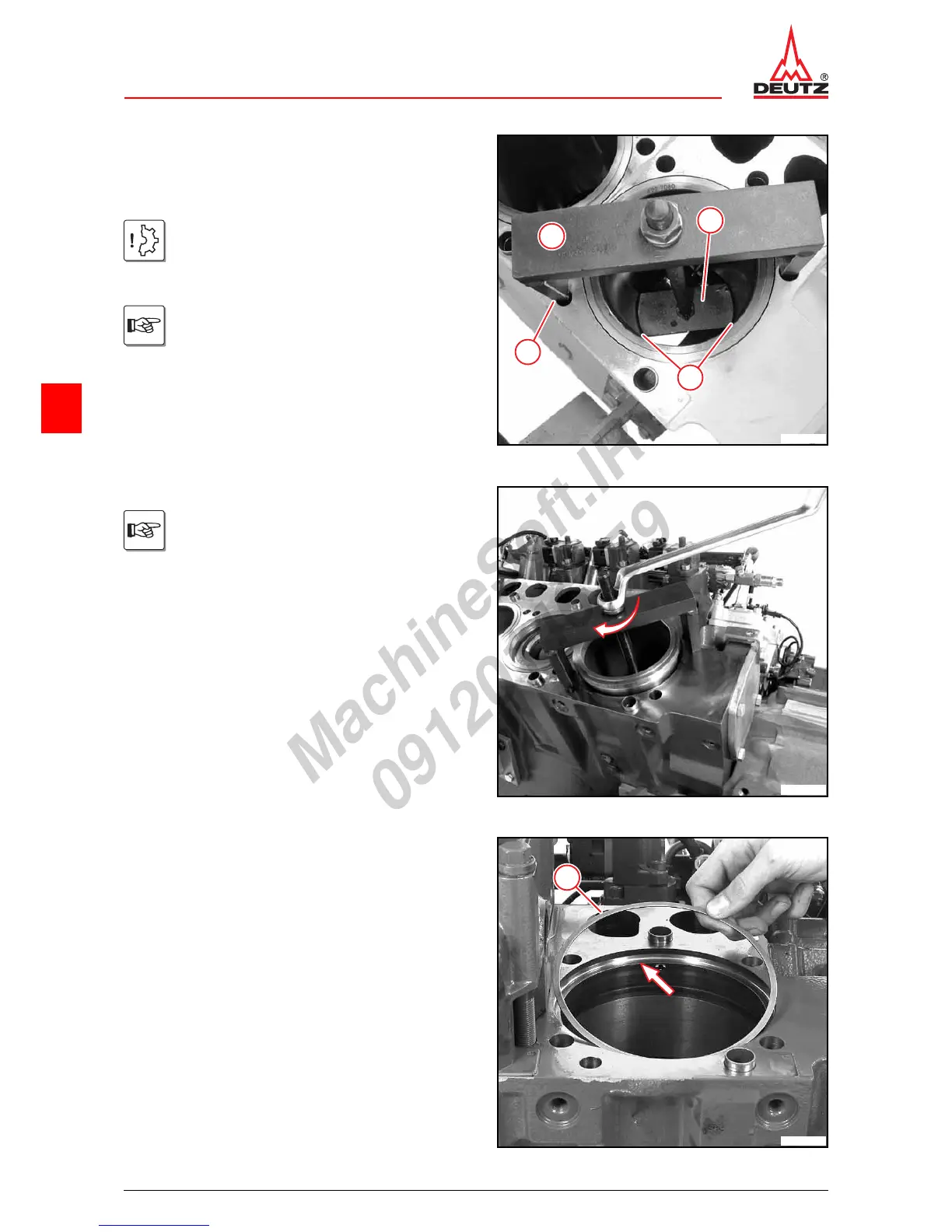

z Fold back plate and insert puller.
– Place the plate (1) with the lay-on surfaces against
the cylinder liner (2) and hold them together.
– Mount the counter holder (3) on the crankcase (4) .
Attention!
Do not damage the peripheral surfaces
and the sealing surfaces.
Do not damage the piston cooling nozzle.
The counterweights of the crankshaft face
the lubricating oil pan.
2
3
1
4
© 36782-1
z Pull the cylinder liner up and out.
z Remove the disassembly device.
z Pull the cylinder liner up and out.
Turn the nut in the direction of the arrow.
© 42230-1
z Remove shim ring (1).
z Visually inspect collar rest (arrow).
z Visually inspect sealing surface.
1
© 40677-0
