TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
4/14
6

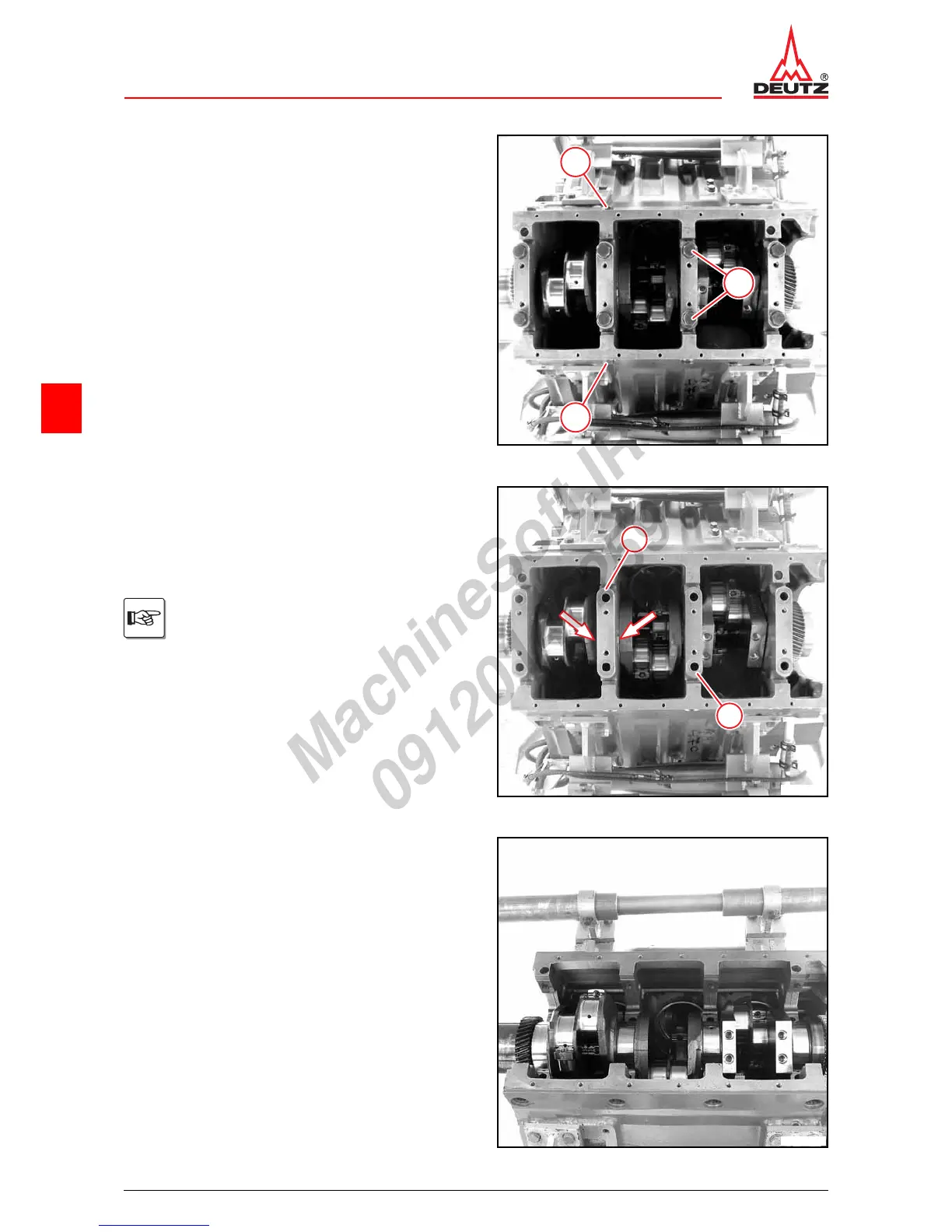

z Unscrew all screws (1) with the socket wrench
insert 8035.
z Unscrew all screws (2) with the socket wrench
insert size 24.
2
1
1
© 40483-1
z Remove bearing cap (1).
z Remove bearing shell.
z Remove bottom thrust ring halves (arrows).
z Remove all main bearing covers (2).
z Remove the main bearing shells.
Lay out components in the order in which
they should be installed.
Note order of cylinders.
1
1 - 2724 A
2 - 2724 A
3 - 2724 A
4 - 2724 A
2
© 42144-1
z Press the con rods carefully out of the lifting journal.
© 40484-0
