© 06/2006 8169-001
3/14
TCD 2015
Drive system
W 02-04-01
6

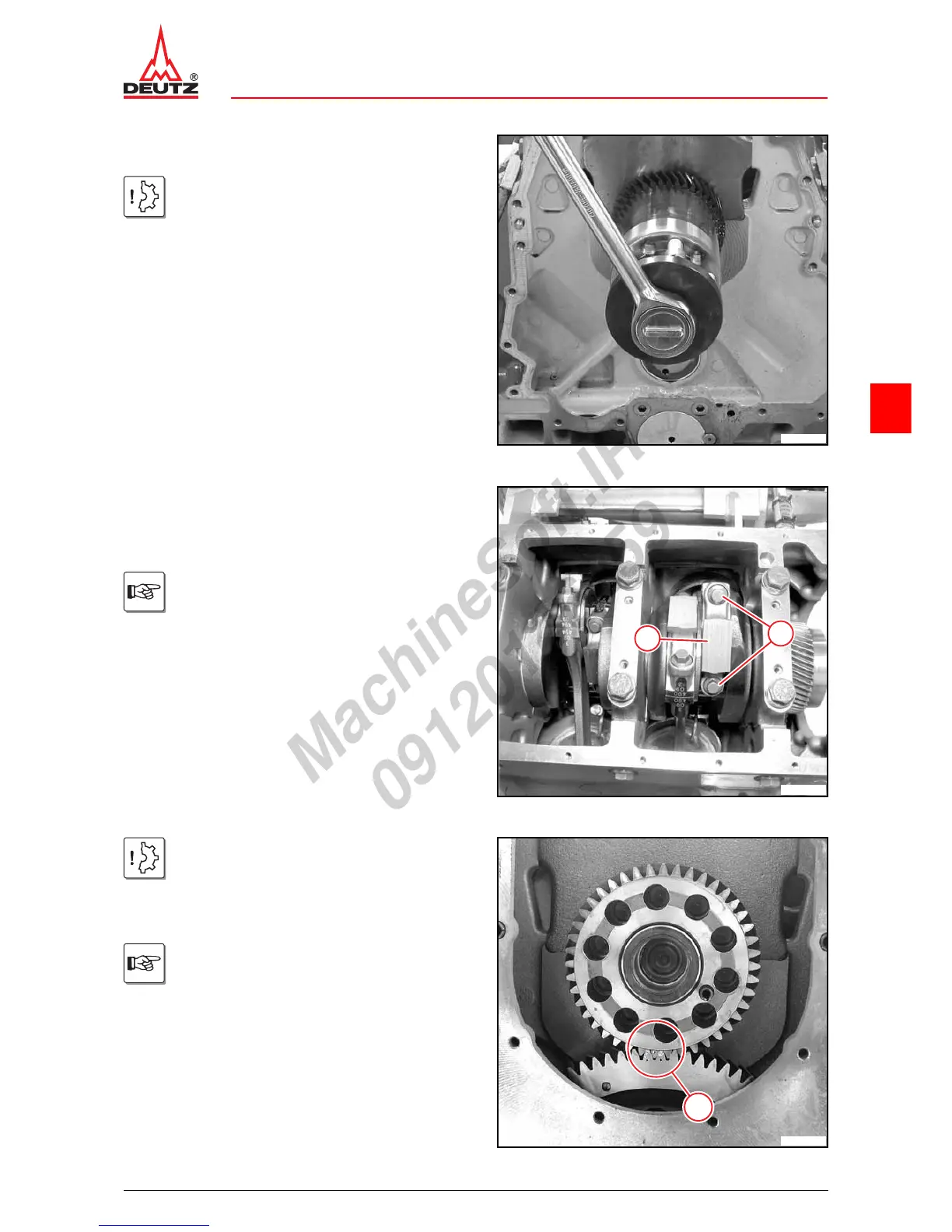

z Place lifting journal of the respective cylinder at bot-
tom dead centre (BDC).
Attention!
Do not jam the con rods when turning the
crankshaft.
© 40496-0
z Unscrew screws (1) with the socket wrench
insert 8015.
z Remove all big end bearing caps (2).
z Remove bearing shell.
Lay out components in the order in which
they should be installed.
Note order of cylinders.
1
2
© 40481-0
z Turn the crankshaft with the turning gear evenly.
Attention!
Do not jam the con rods when turning the
crankshaft.
Do not damage the big end bearing shells.
The marking on the crankshaft gear wheel
must be between the markings on the
camshaft gear wheel (1).
1
© 40482-0
