TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
2/14
6

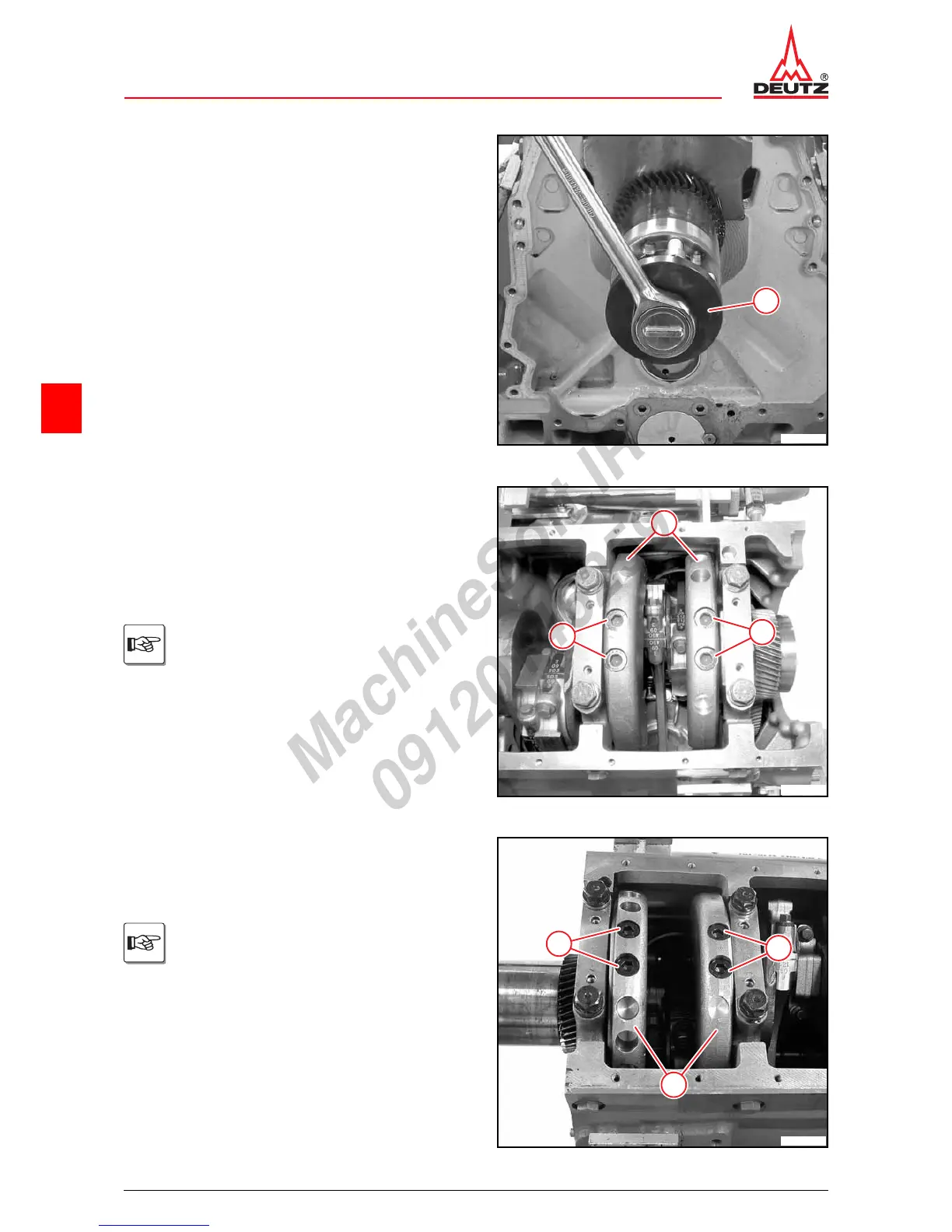

z Mount turning gear (1).
1
© 40471-0
z Set the counterweights (1) of cylinders A1/B1 at bot-
tom dead centre.
T00 81
z Turn the crankshaft with the turning gear.
z Unscrew screws (2).
z Remove counterweights (1).
Lay out components in the order in which
they should be installed.
2
2
1
© 42140-1
z Set the counterweights (1) of cylinders A3/B3 at bot-
tom dead centre.
z Unscrew screws (2).
z Remove counterweights (1).
Lay out components in the order in which
they should be installed.
1
2
2
© 40480-0
