© 06/2006 8169-001
7/14
TCD 2015
Drive system
W 02-04-01
6

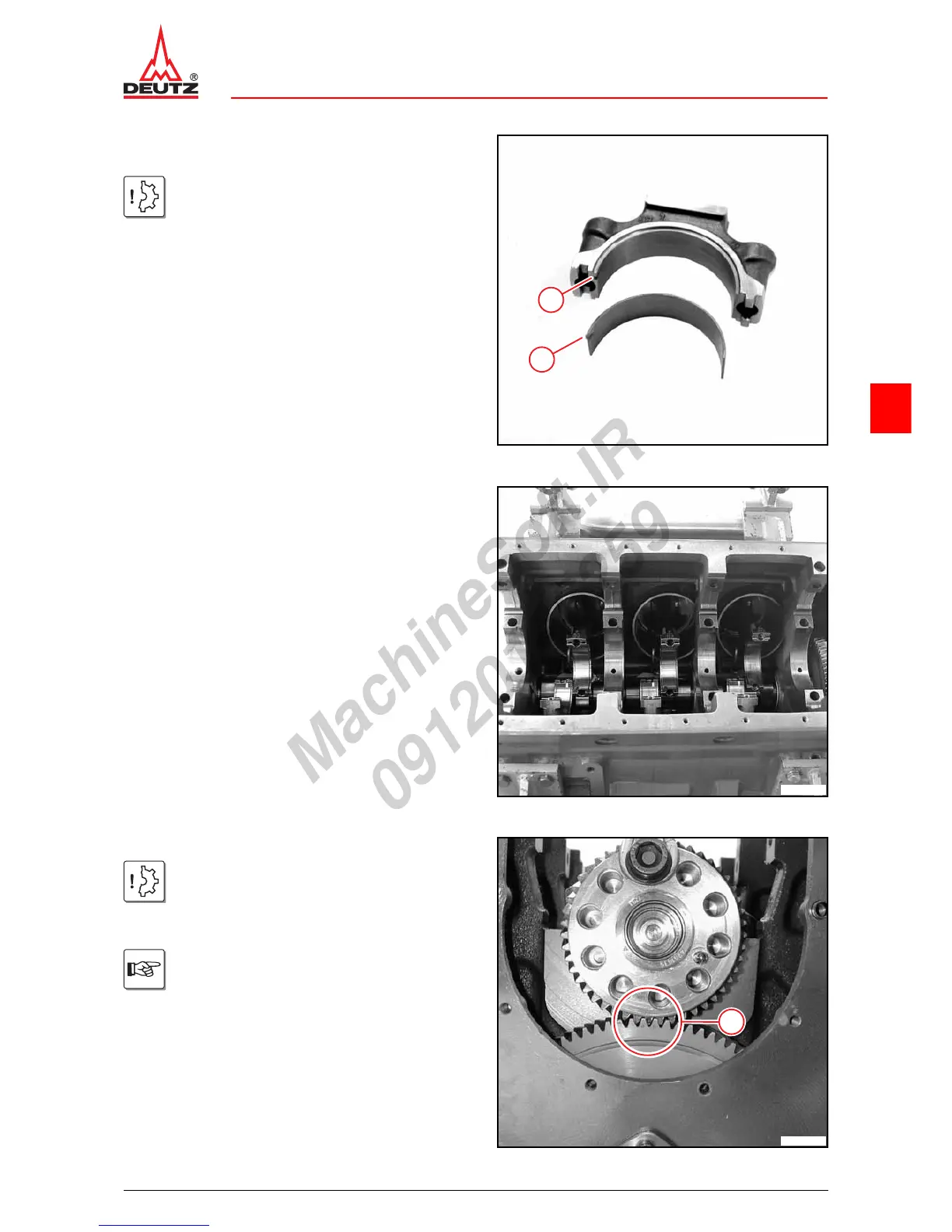

z Insert big end bearing shells in the respective big end
bearing cap.
Attention!
Note the assignment of the bearing shells.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 36769-1
z Lightly oil bearing surfaces.
© 40488-0
z Insert the crankshaft carefully in the crankcase.
z Set the crankshaft in line with the camshaft (1) .
Attention!
Do not jam the con rods when inserting the
crankshaft!
The marking on the crankshaft gear wheel
must be between the marking points on the
camshaft gear wheel.
1
© 37045-1
