TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
8/14
6

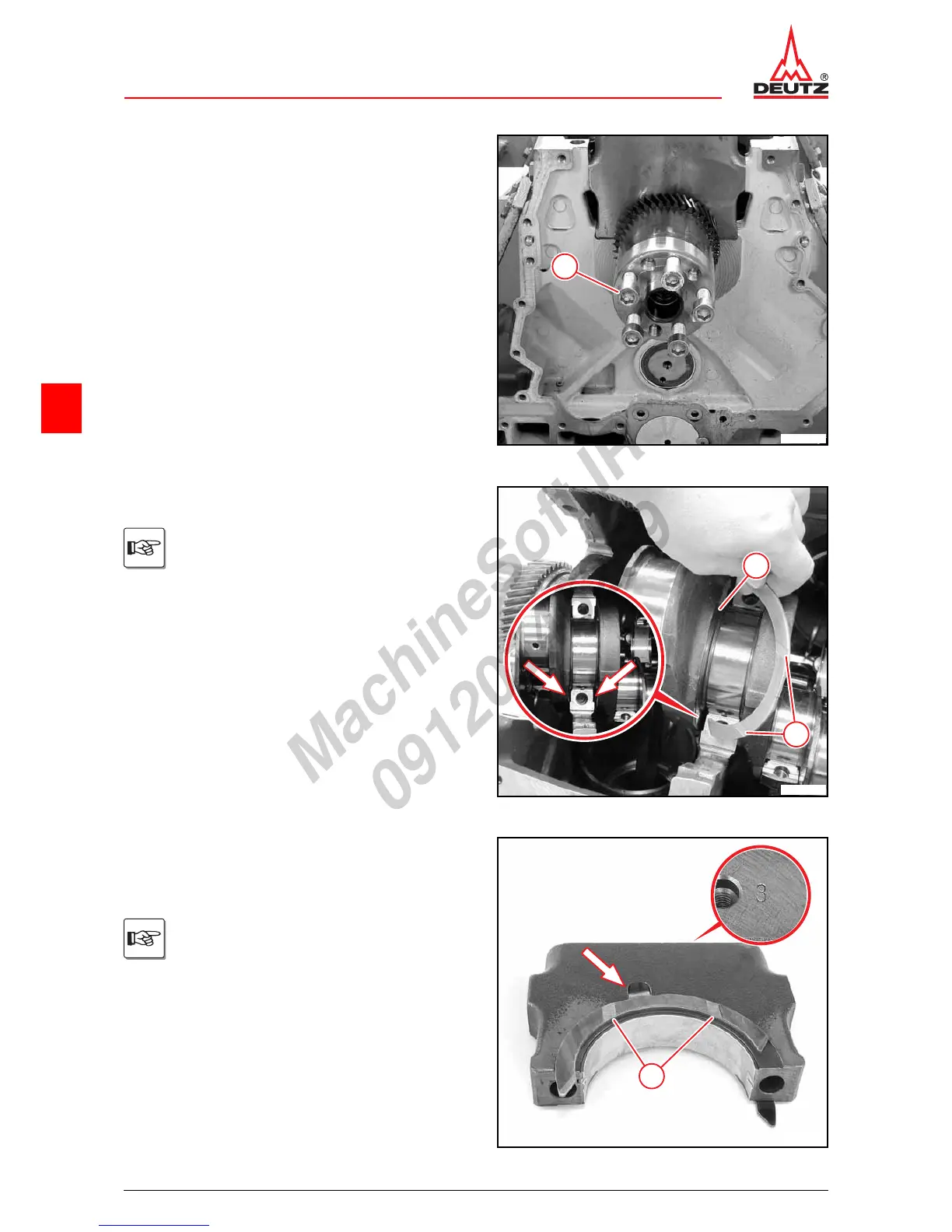

z Fasten all screws (1).
z Mount the turning gear.
1
© 40470-0
z Install upper thrust ring halves according to meas-
ured axial clearance.
The oil grooves (1) face the crankshaft
web face (2).
Insert thrust ring halves between crank-
case and crankshaft web (arrows).
1
2
© 42180-1
z Install lower thrust ring halves according to meas-
ured axial backlash.
z Fix thrust ring halves with a little grease to the bear-
ing cap.
Use thrust ring halves with guide
lug (arrow).
Oil grooves (1) face the crankshaft web
face.
Bearing cap has identification “3“.
1
© 40489-0
