Drive system
W 02-04-01
6

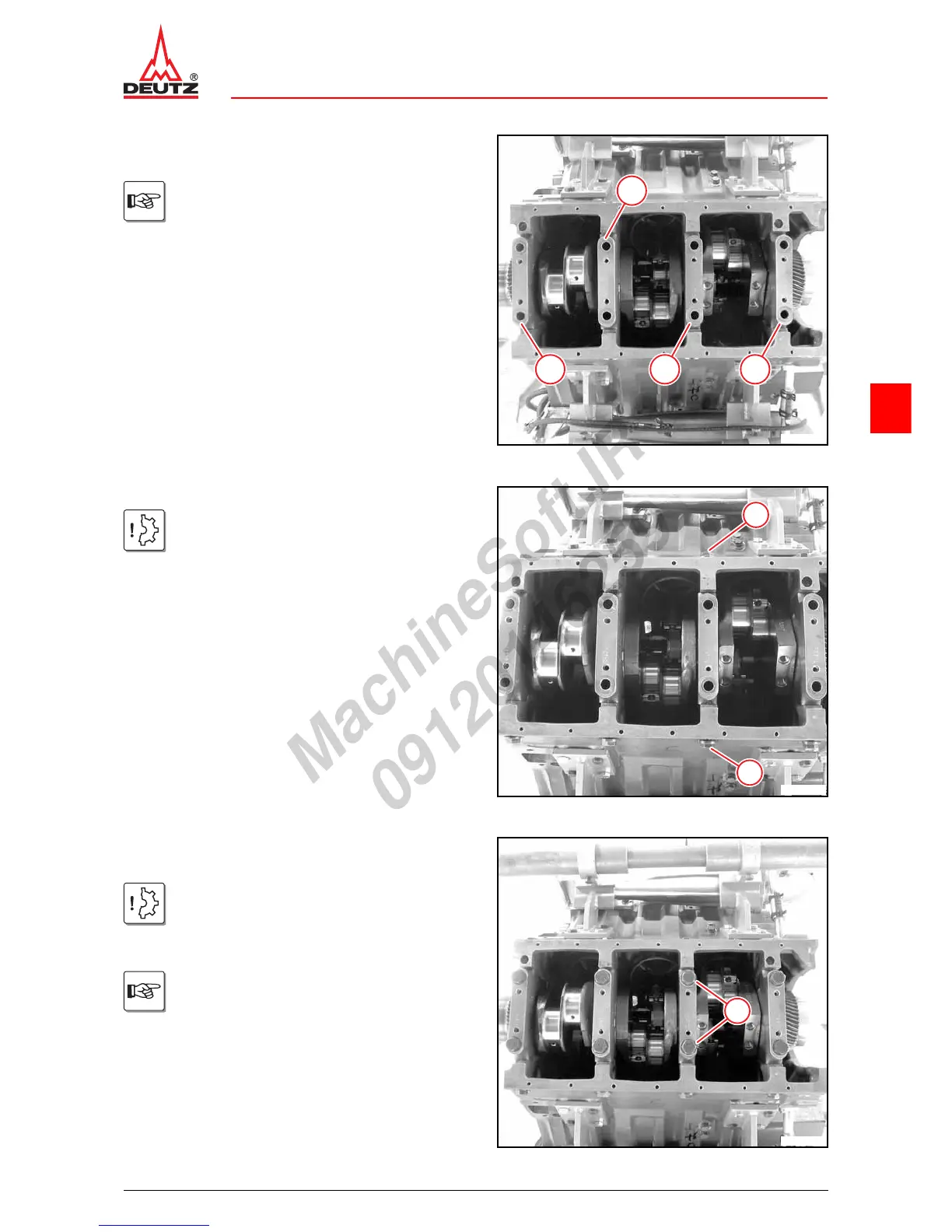

z Insert bearing cap (1).
z Insert main bearing covers (2).
Note assignment and installation position:
Assignment of the main bearing covers:
With identification "1" = flywheel side.
With identification "4" = side opposite flyw-
heel side.
Identifications legible from the flywheel
side.
1
222
1 - 2724 A
2 - 2724 A
3 - 2724 A
4 - 2724 A
© 42146-2
z Fasten all screws (1).
Attention!
Screws can be used a maximum 3 times
with written documentation.
1
1
© 42147-1
z Oil the screws lightly.
z Fasten all screws (1).
z Move the crankshaft axially to and fro.
Attention!
Screws can be used a maximum 3 times
with written documentation.
The bearing is aligned in position as a
result.
1
© 42148-1
