TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
10/14
6

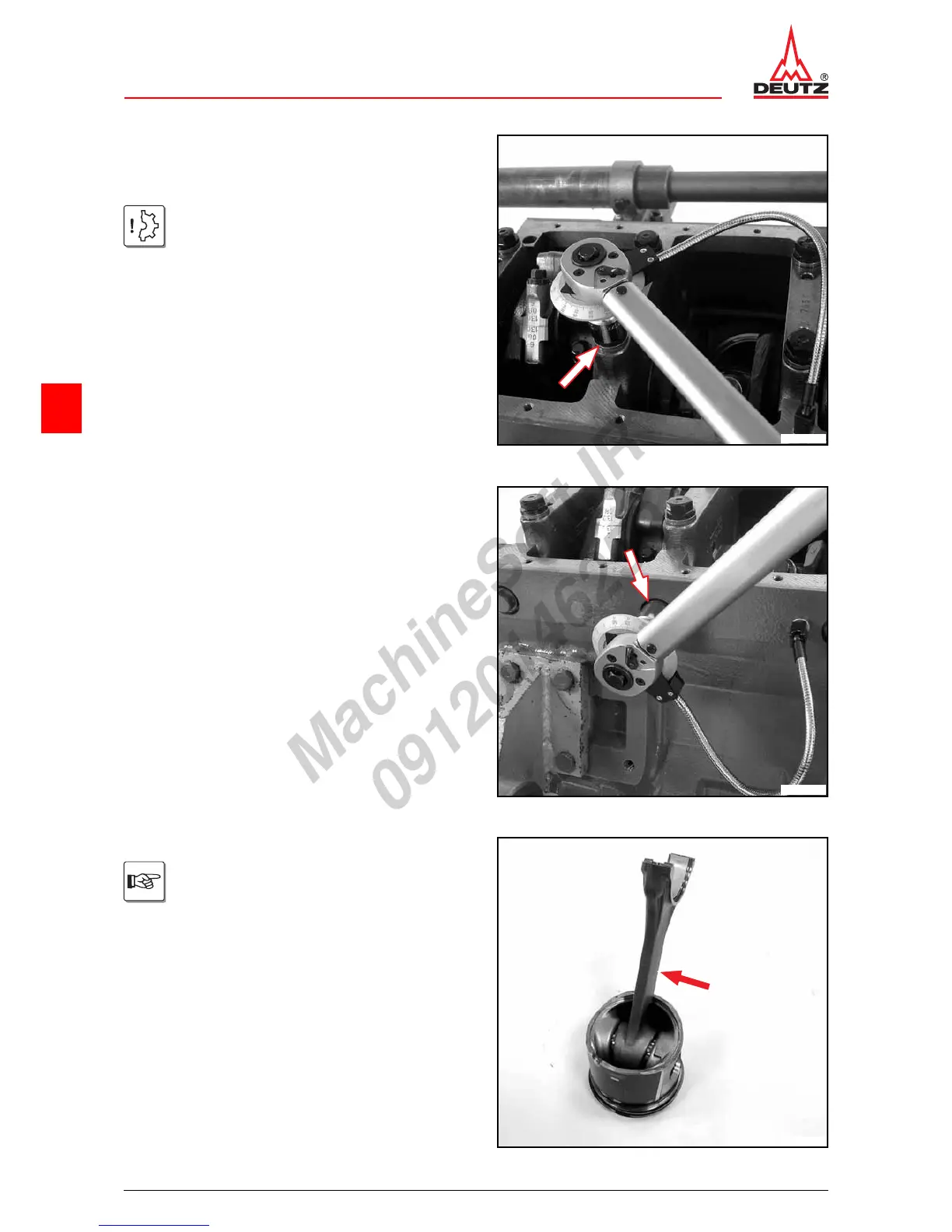

z Tighten all screws (arrow) with the socket wrench in-
sert size 24 and rotation angle disc.
A02 010
Attention!
Do not jam the main bearing cover.
© 40491-0
z Tighten all screws (arrow) with the socket wrench in-
sert 8035 and rotation angle disc.
A02 011
© 40492-0
z Check installation position of the connecting rods.
The flattened side (arrow) faces the flyw-
heel on the A-bank and the genset support
on the B-bank.
© 37204-1
