© 06/2006 8169-001
11/14
TCD 2015
Drive system
W 02-04-01
6

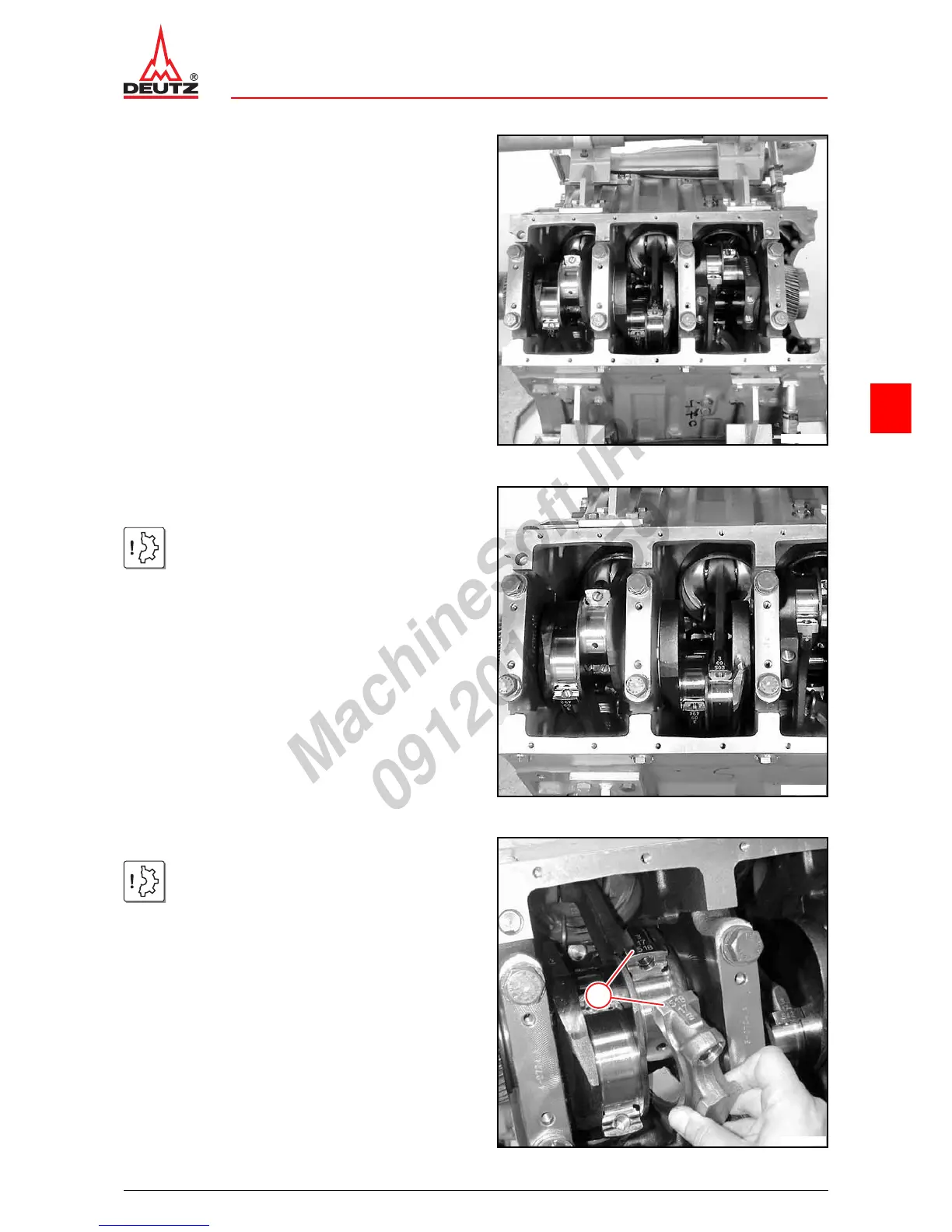

z Pull con rods carefully on to the lifting journal.
© 42151-1
z Place lifting journal of the respective cylinder at bot-
tom dead centre (BDC).
Attention!
Do not jam the con rods when turning the
crankshaft.
© 40493-0
z Mount big end bearing cap.
Attention!
Note assignment and installation position:
The identification numbers (1) on the con-
necting rod and the big end bearing cover
must be identical and opposite to each
other when assembled.
1
© 37055-1
