TCD 2015
Drive system
W 02-04-01
© 06/2006 8169-001
12/14
6

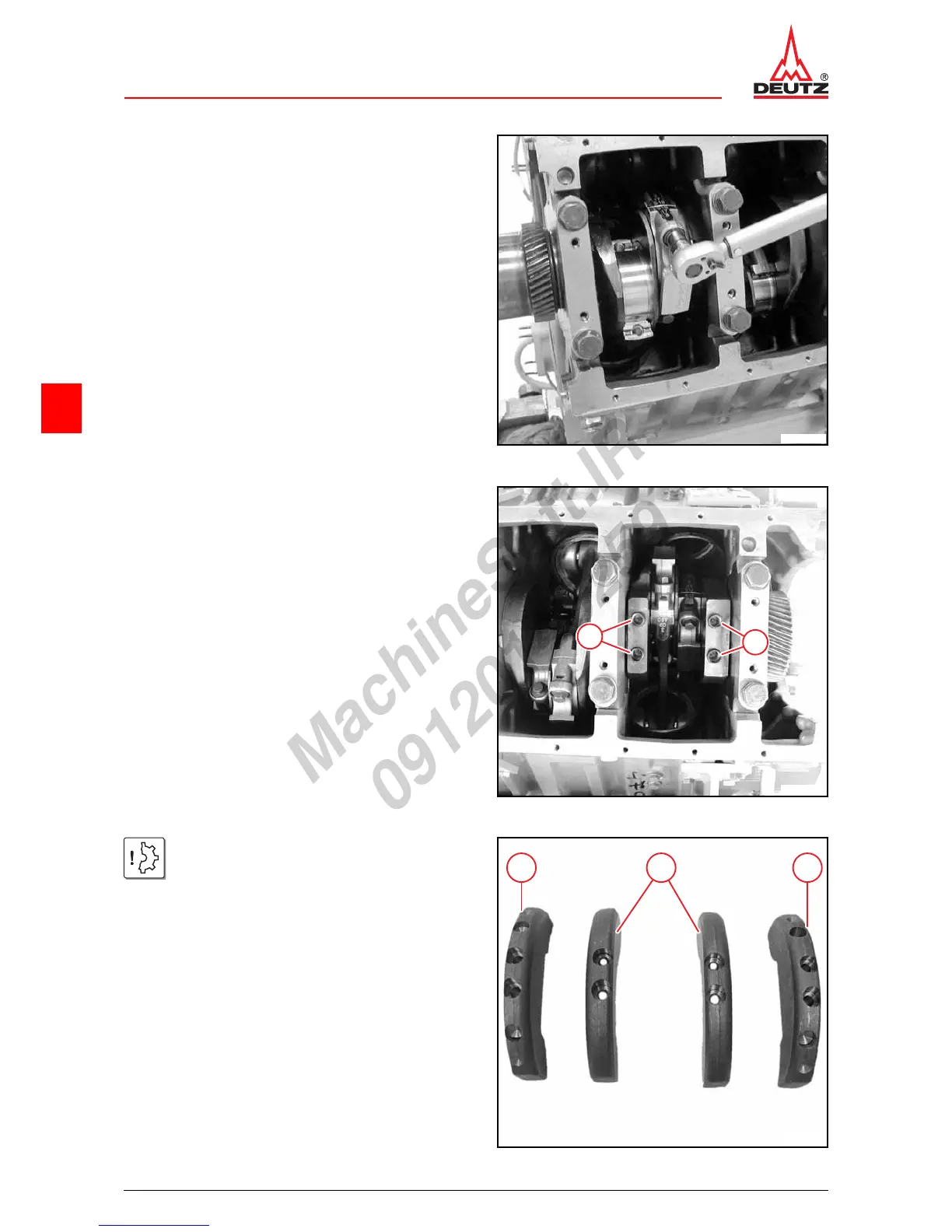

z Tighten new screws with the socket wrench insert
8015 and rotation angle disc.
A02 020
© 37056-1
z Place crankshaft web of the respective cylinder at
bottom dead centre (BDC).
z Pay attention to clamping bushing (1).
1
1
© 42152-1
Attention!
Note assignment and installation position:
Assignment of the counterweights:
Counterweight with
identification "1" = flywheel side.
Flattened sides (1) face the main bearing
cover.
1
2
3
4
111
© 37057-2
