Deutz TCD 2015 - Page 285

© 06/2006 8185-001
5/6
TCD 2015
Engine control
W 04-04-09
6

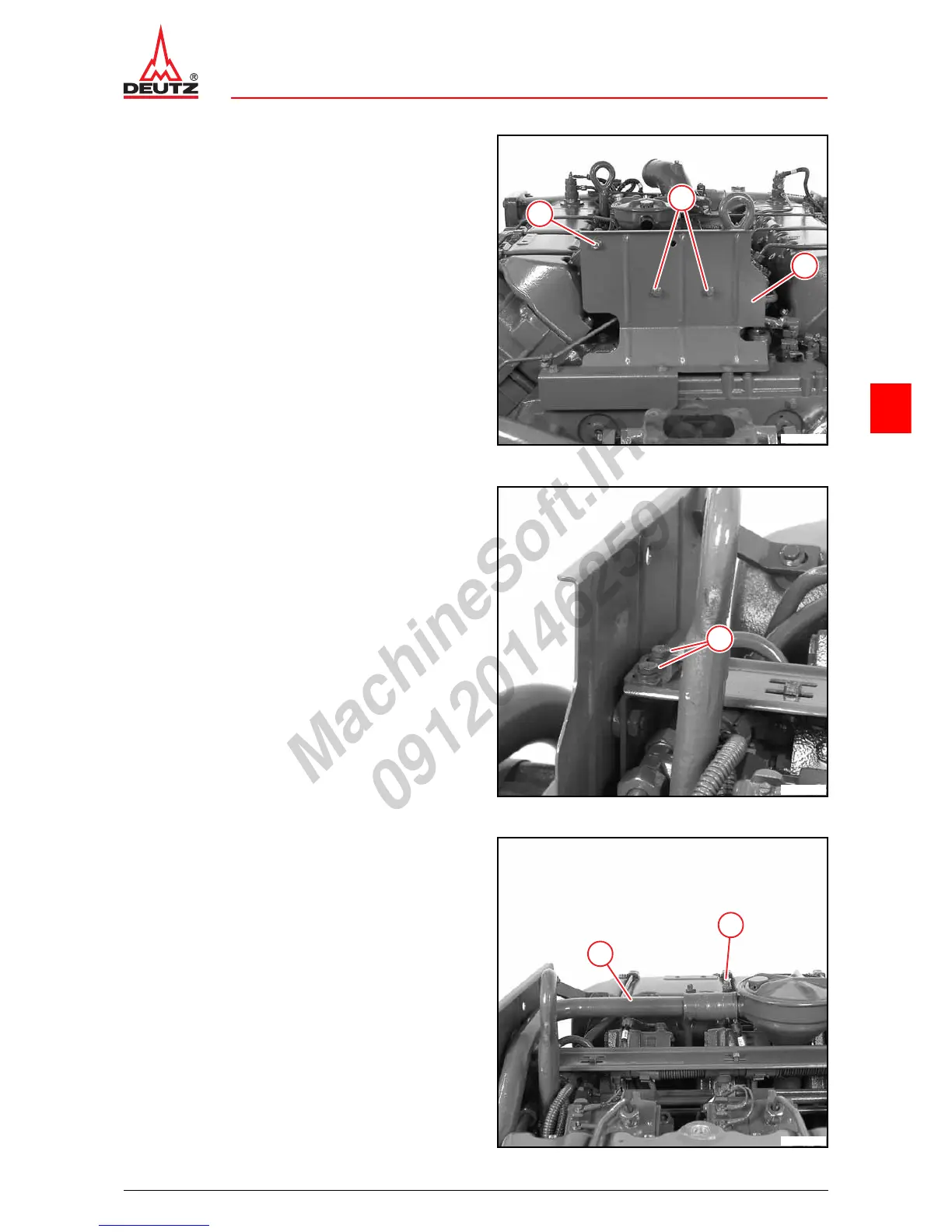

z Mount heat shield (3).
z Insert spacing sleeves with screws (1).
z Tighten screws (1).
z Fasten all screws (2).
z Tighten all screws.
 A12 071
3
2
1
© 40703-0
z Tighten screws (1).
 A13 094
1
© 40702-0
z Push on pipe (2).
z Tighten hose clip (1).
 A03 064
1
2
© 40701-0
