© 06/2006 8179-001
5/10
TCD 2015
Crankcase
W 03-08-03
6

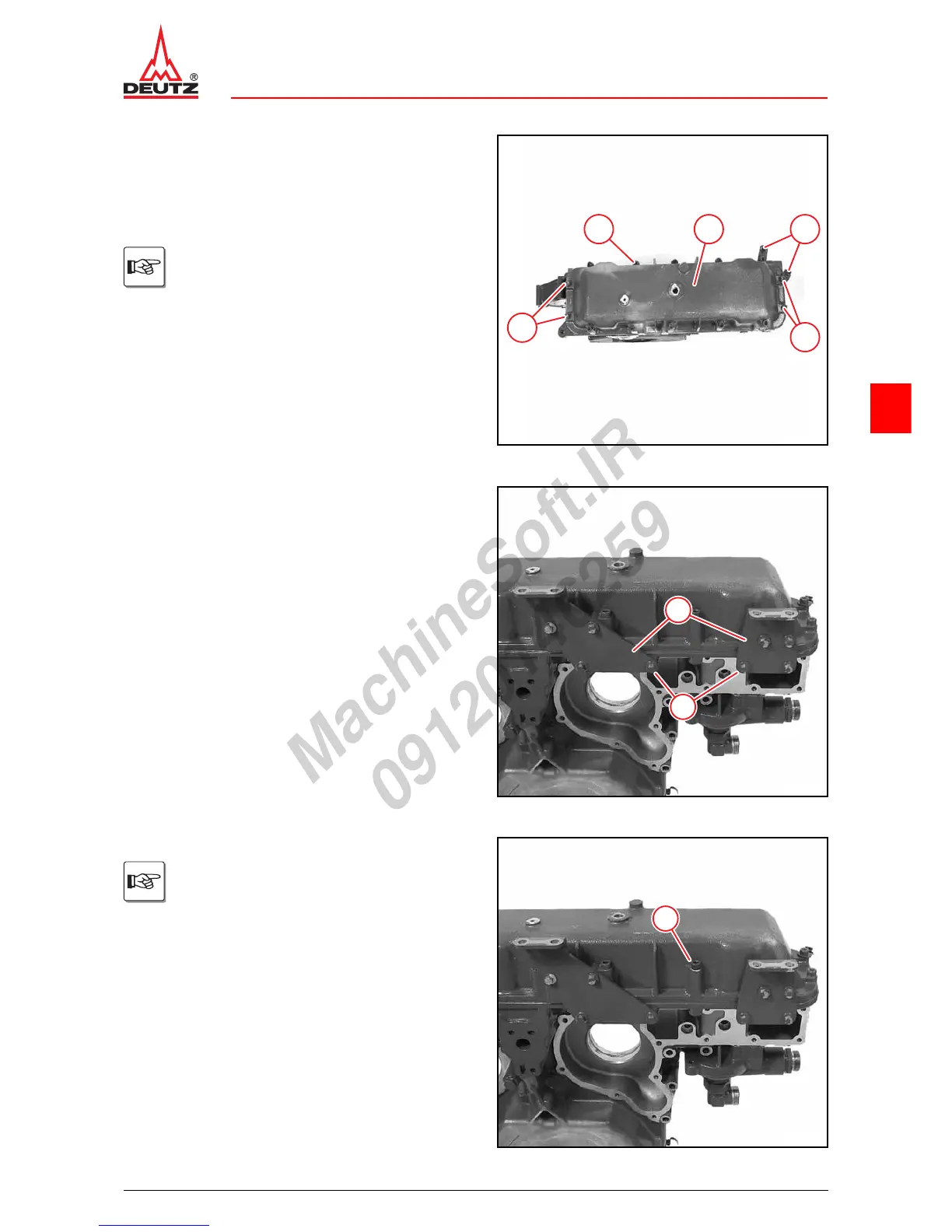

z Clean sealing surfaces.
z Mount new gasket.
z Mount oil cooler cover (4).
z Mount holder (1).
z Fasten all screws.
Screw length:
M8 x 35 mm (2)
M8 x 65 mm (3)
43
2
1
2
© 40562_1
z Mount holder (1).
z Fasten all screws (2).
1
2
© 40523-0
z Align oil cooler cover.
z Tighten all screws (1) alternately.
A08 050
The lay-on surfaces of the oil cooler cover
and the genset support must contact the
holders.
Do not move gasket.
1
© 40524-0
