Deutz TCD 2015 - Page 248

TCD 2015
Crankcase
W 03-08-03
© 06/2006 8179-001
6/10
6

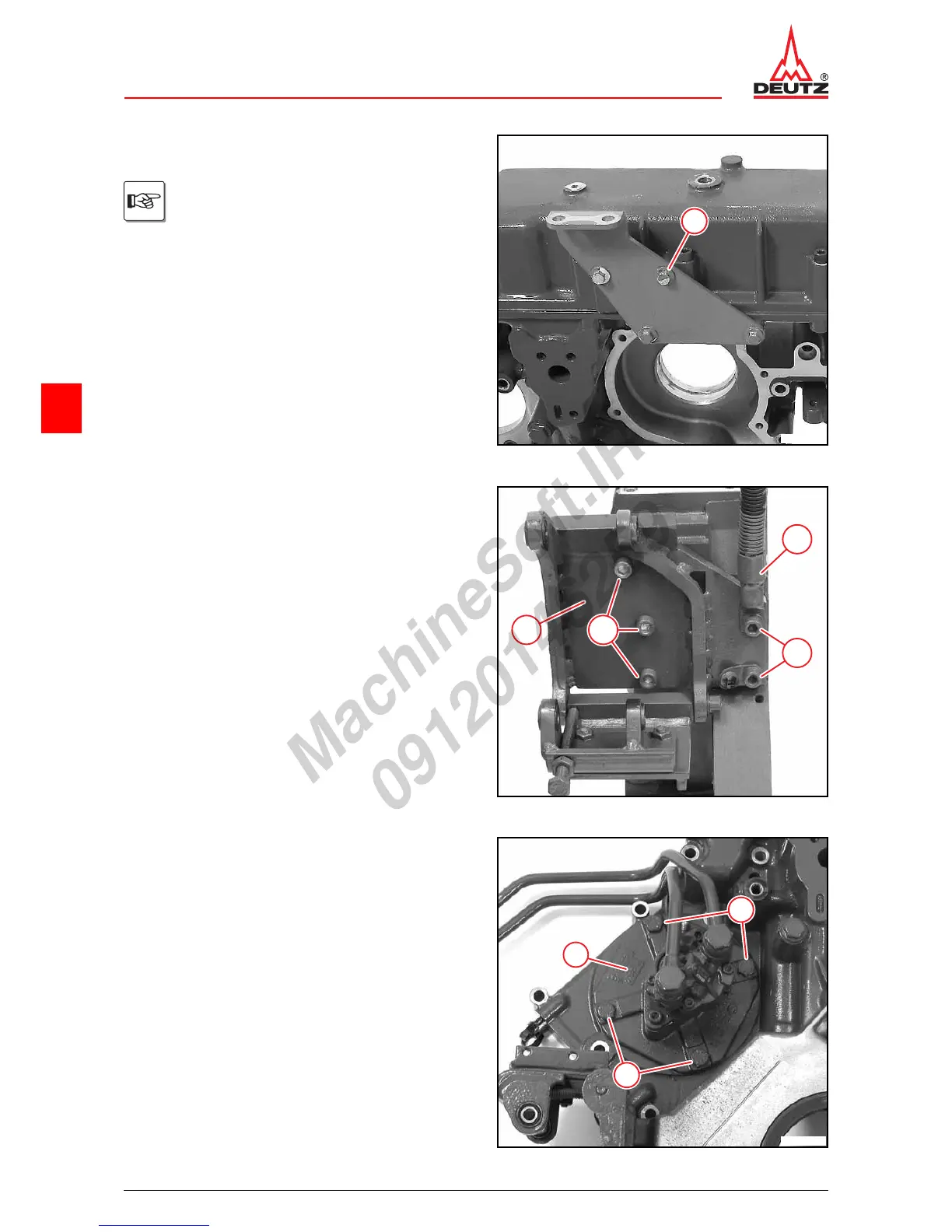

z Unscrew all screws (1).
z Remove holder.
The screws for both holders are not tighte-
ned until after mounting the connecting
pipe.
1
© 40525-0
z Mount holder (3).
z Mount ground cable (2).
z Tighten screws (1).
 A13 018
3
1
2
1
© 40560_1
z Insert new O-ring.
z Insert bearing housing (2).
z Tighten screws (1).
 A07 024
1
2
1
© 40559-0
