© 06/2006 8187-001
21/24
TCD 2015
Engine control
W 04-05-05
6

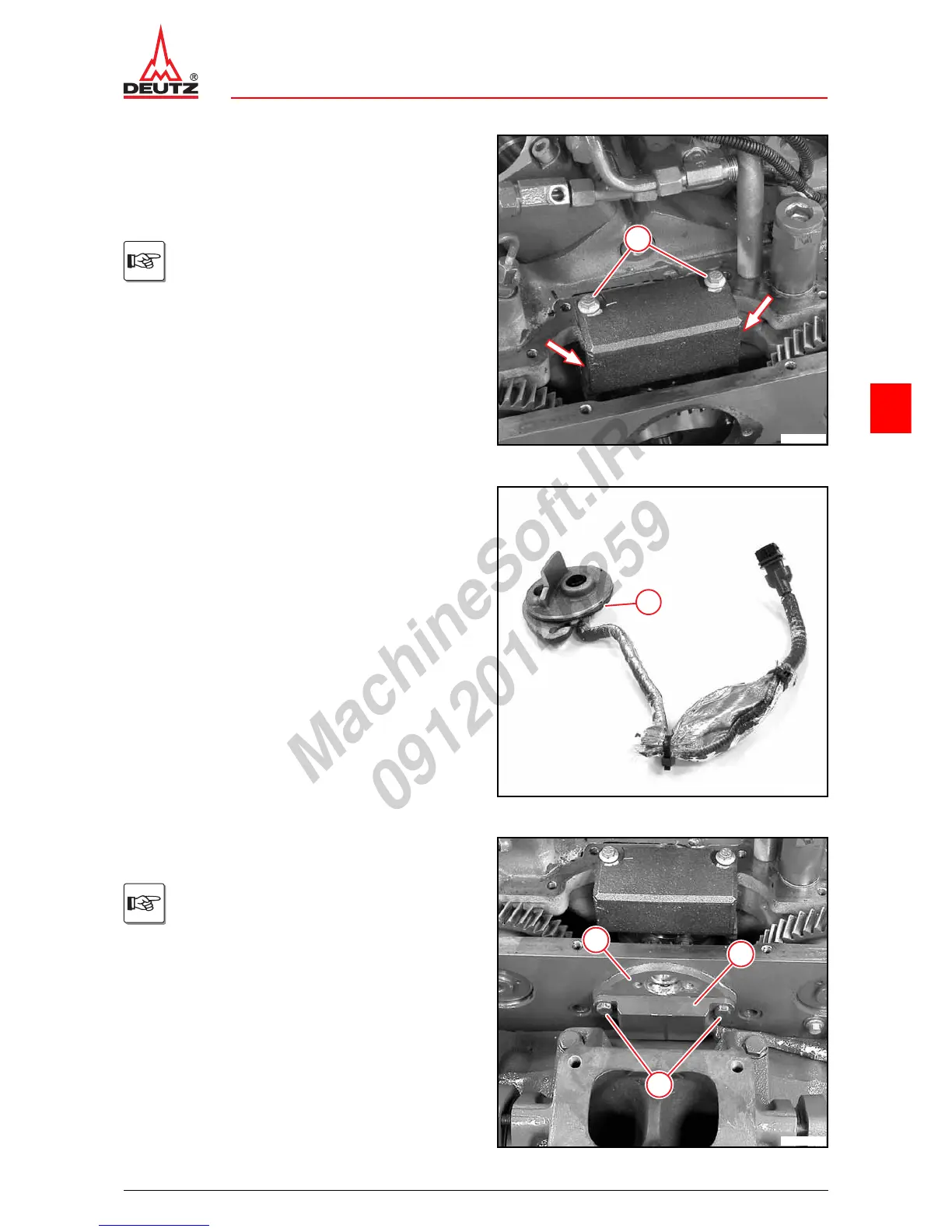

z Tighten screws (1).
A04 015
z Check axial backlash again.
P04 43
Check axial backlash on both sides bet-
ween
pad thrust bearing and gear
wheel (arrows).
1
© 40514-0
z Clean sealing surfaces.
z Mount new O-ring (1).
z Lightly oil O-ring.
1
© 40515-0
z Press in the cover (3) to the stop.
z Mount cover (2).
z Tighten screws (1).
A04 022
Insert screws with locking agent.
1
3
2
© 40460-0
