Deutz TCD 2015 - Page 314

TCD 2015
Engine control
W 04-05-05
© 06/2006 8187-001
22/24
6

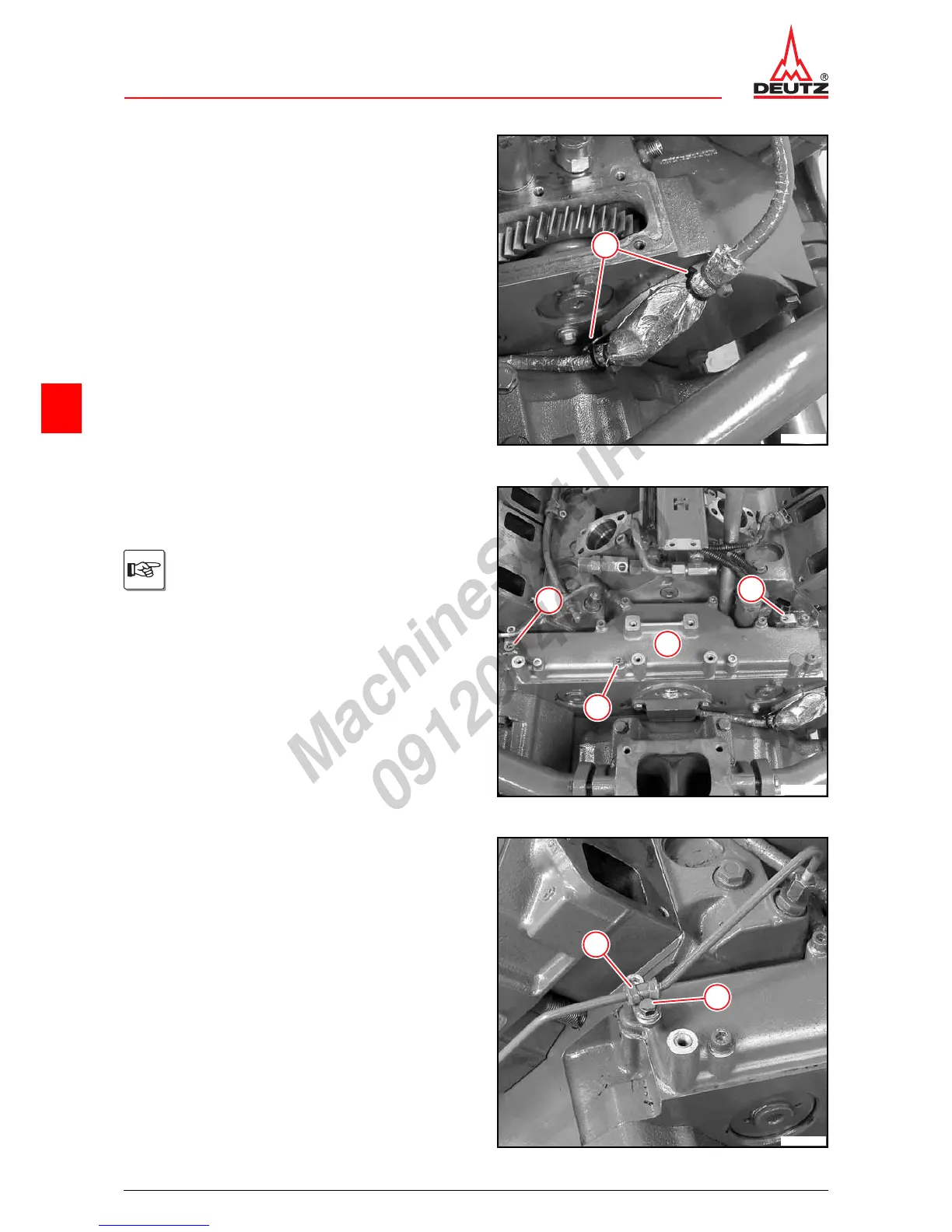

z Fix cable tie (1).
1
© 40459-0
z Clean sealing surfaces.
z Apply packing compound evenly to the sealing sur-
face of the gear case.
z Mount gear case cover (1).
z Mount holder (2).
z Tighten all screws (3) alternately.
 A04 020
Use packing compound DEUTZ DW 48.
1
3
2
2
© 40516-0
z Mount pipe clamp (2).
z Tighten screw (1).
 A08 045
1
2
© 40456-0
