© 06/2006 8180-001
3/4
TCD 2015
Crankcase
W 03-09-01
6

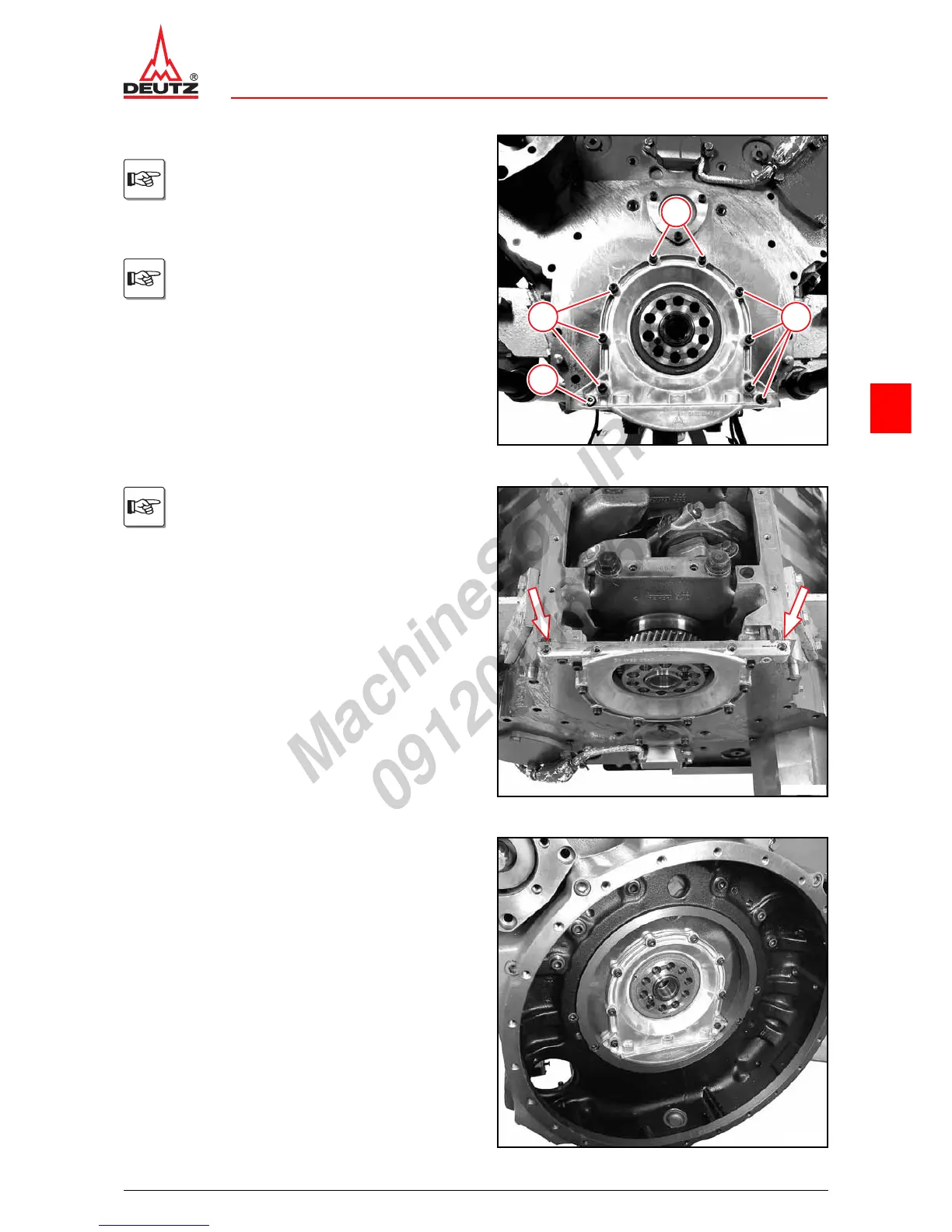

z Mount rear cover.
z Fasten screws.
z Insert screws (1) with locking agent.
z Tighten screws alternately.
A03 010
Use new sealing rings.
Screw length:
M8 x 30 mm (1),(3)
M8 x 45 mm (2)
33
1
2
© 40688_1
The gasket (arrows) must be flush with the
sealing surface of the oil pan.
© 40689-0
z Install lubricating oil pan.
W 08-04-07
z Install connection housing.
W 03-09-04
z Renew crankshaft sealing ring (flywheel side).
W 02-02-02
© 40655-0
