TCD 2015
Crankcase
I 03-10-05
© 06/2006 8182-001
4/8
6
Grinding

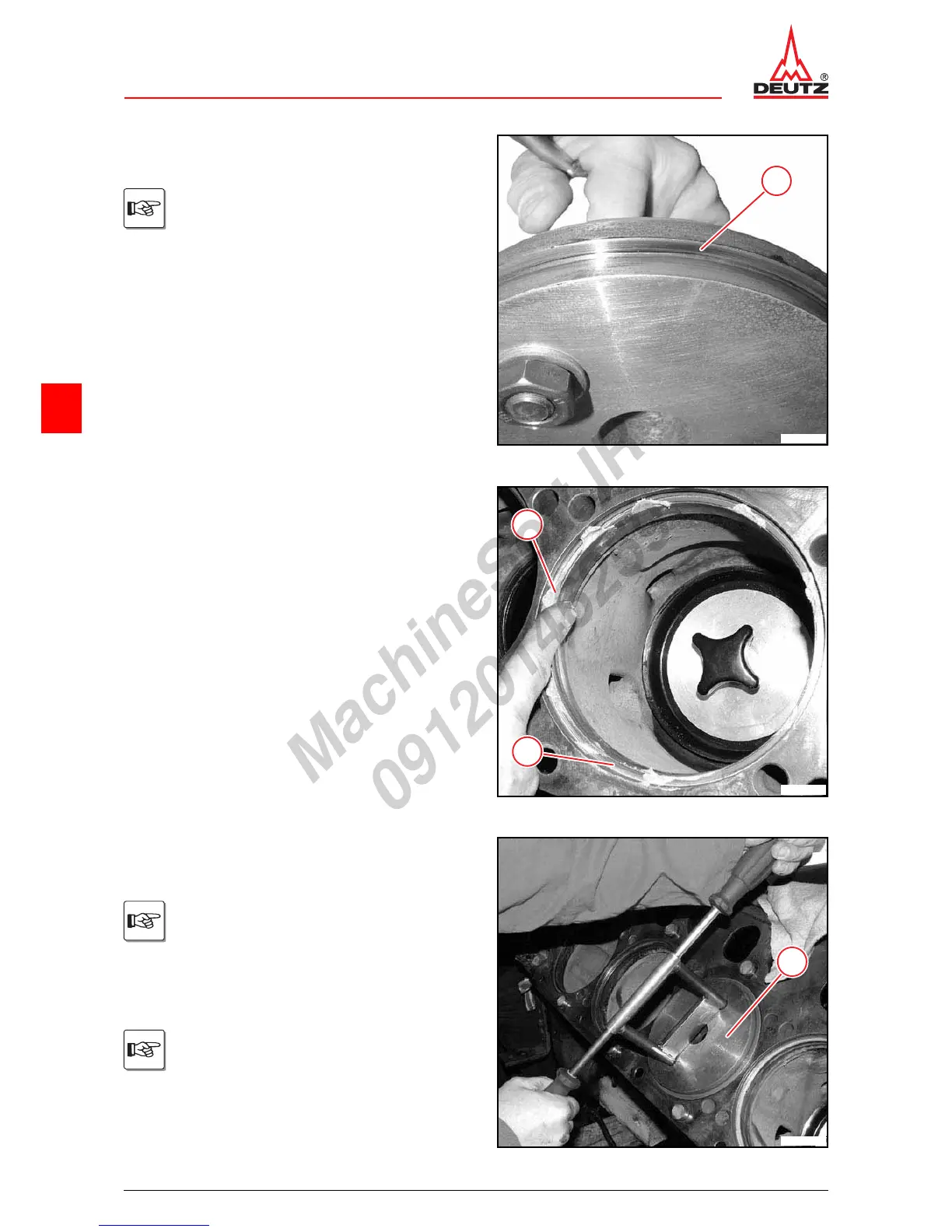

z Move the bracket on the griding/surface plate.
Grinding side “A“ faces down.
A
© 39904-0
z Apply pre-grinding paste (1) to the collar rest (2).
z Add a little clean water.
1
2
© 39907-0
z Place grinding side “A“ on collar rest.
z Turn the grinding/surface plate (1) forwards and
backwards evenly (approx. 180°).
z Remove grind paste and grinding particles.
z Clean the collar rest.
Lift the grinding/surface plate slightly
several times for the grinding paste to
spread evenly.
Note rough grinding noise.
Use cleaning agent.
1
© 39906-0
