© 06/2006 8182-001
3/8
TCD 2015
Crankcase
I 03-10-05
6
Check

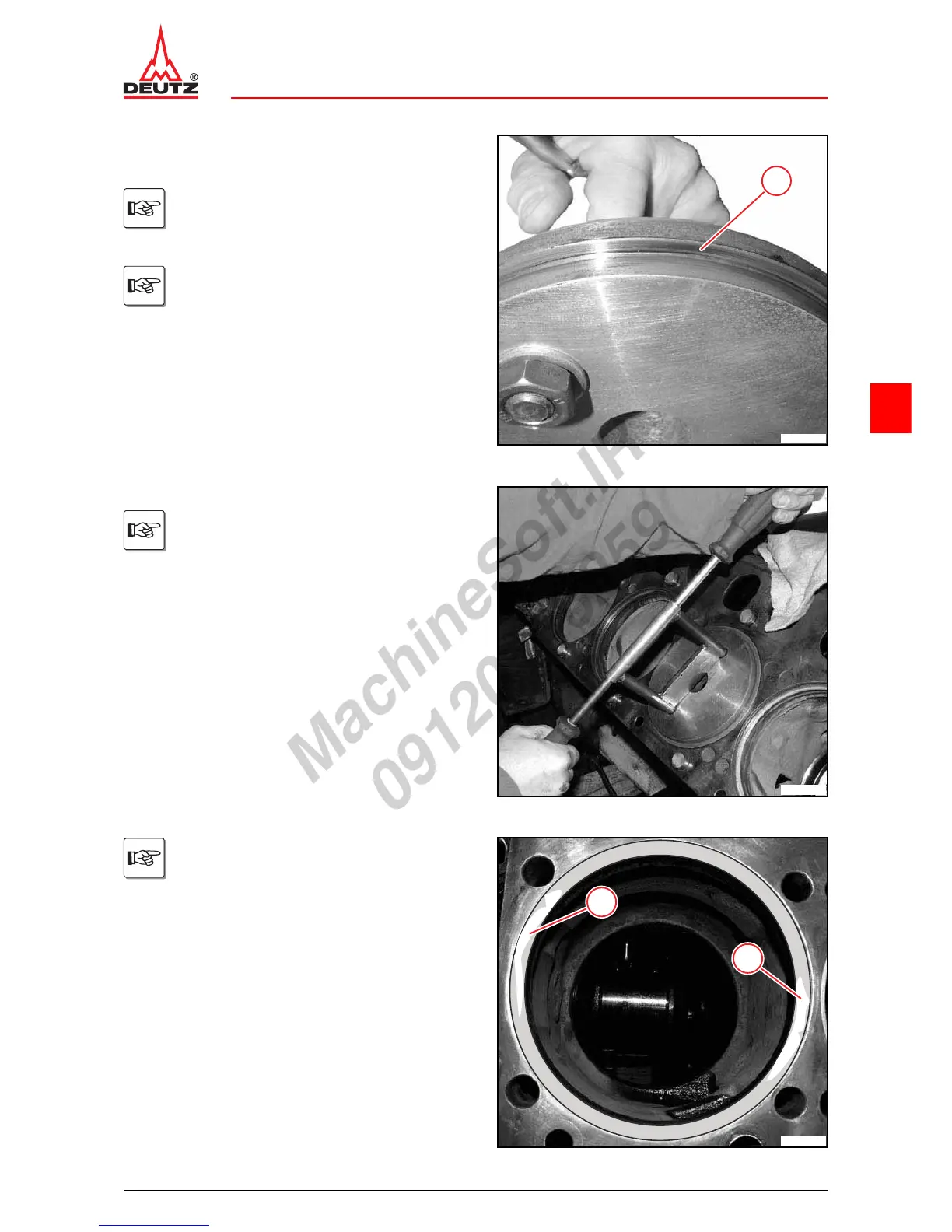

z Move the bracket on the griding/surface plate.
z Apply surface paste thinly to the surface side “B“.
Spotting side “B“ facing downwards.
Applying it too thickly makes it impossible
to detect recesses in the collar rest.
B
© 39916-0
z Place surface side “B“ on collar rest.
z Surface the collar rest.
Note the different processing sides of the
grinding/surface plate:
A - grinding side
B - surface side
© 39906-1
The surfacing shows up recesses (1) in the
collar rest.
1
1
© 39913-0
