TCD 2015
Fuel system
W 07-06-04
6

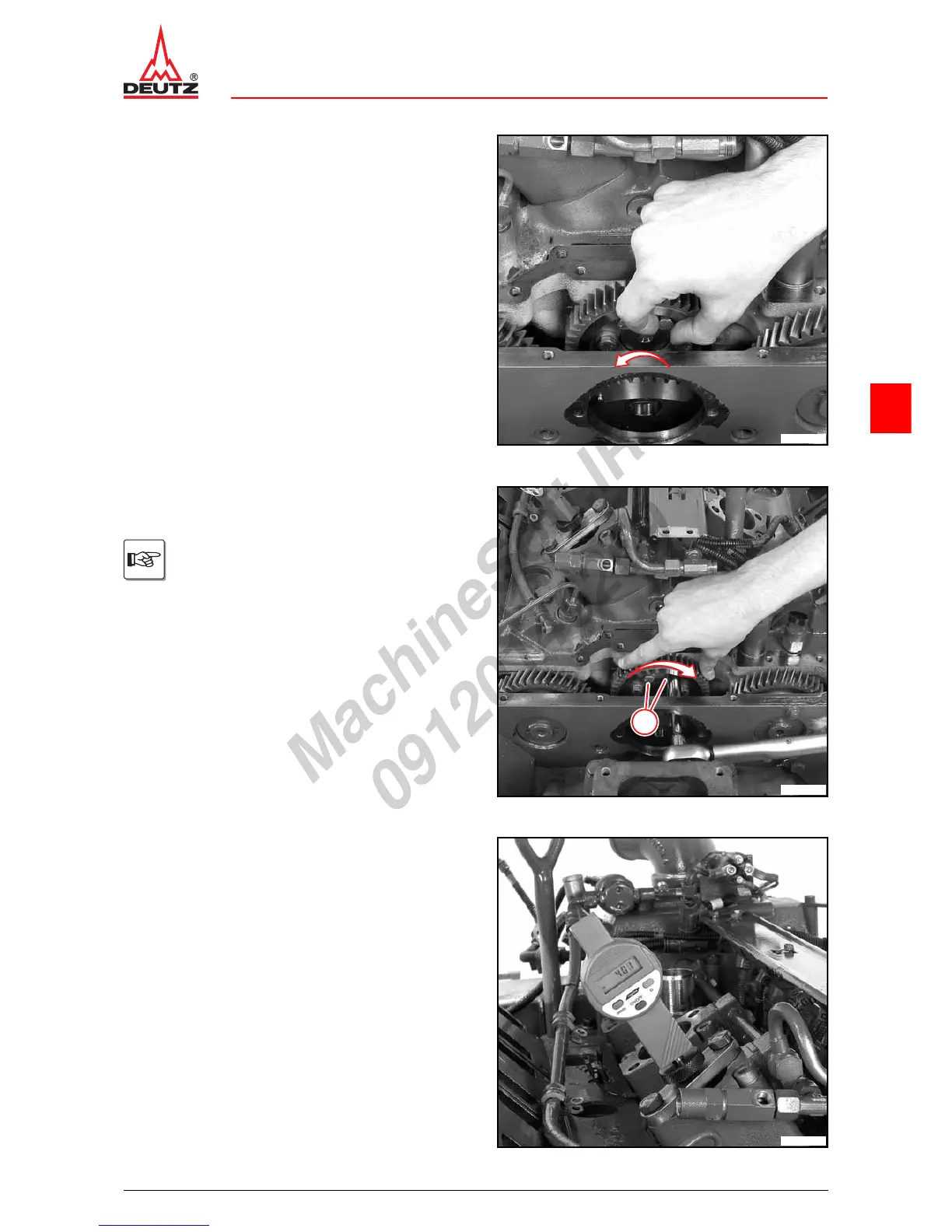

z Turn the injection pump camshaft with the screws in
engine direction of rotation (arrow) until the pre-
scribed plunger lift is reached.
P07 19
© 40509-0
z Pre-tighten screws (1).
A04 004
z Check the setting of the plunger lift again.
When pre-tightening the screws, press the
gear wheel lightly in the opposite direction
to engine rotation (arrow) against the tooth
flanks.
1
© 40510-0
z Remove dial gauge.
z Remove dial gauge holder.
© 40511-0
