TCD 2015
Fuel system
W 07-06-04
© 06/2006 8218-001
8/14
6

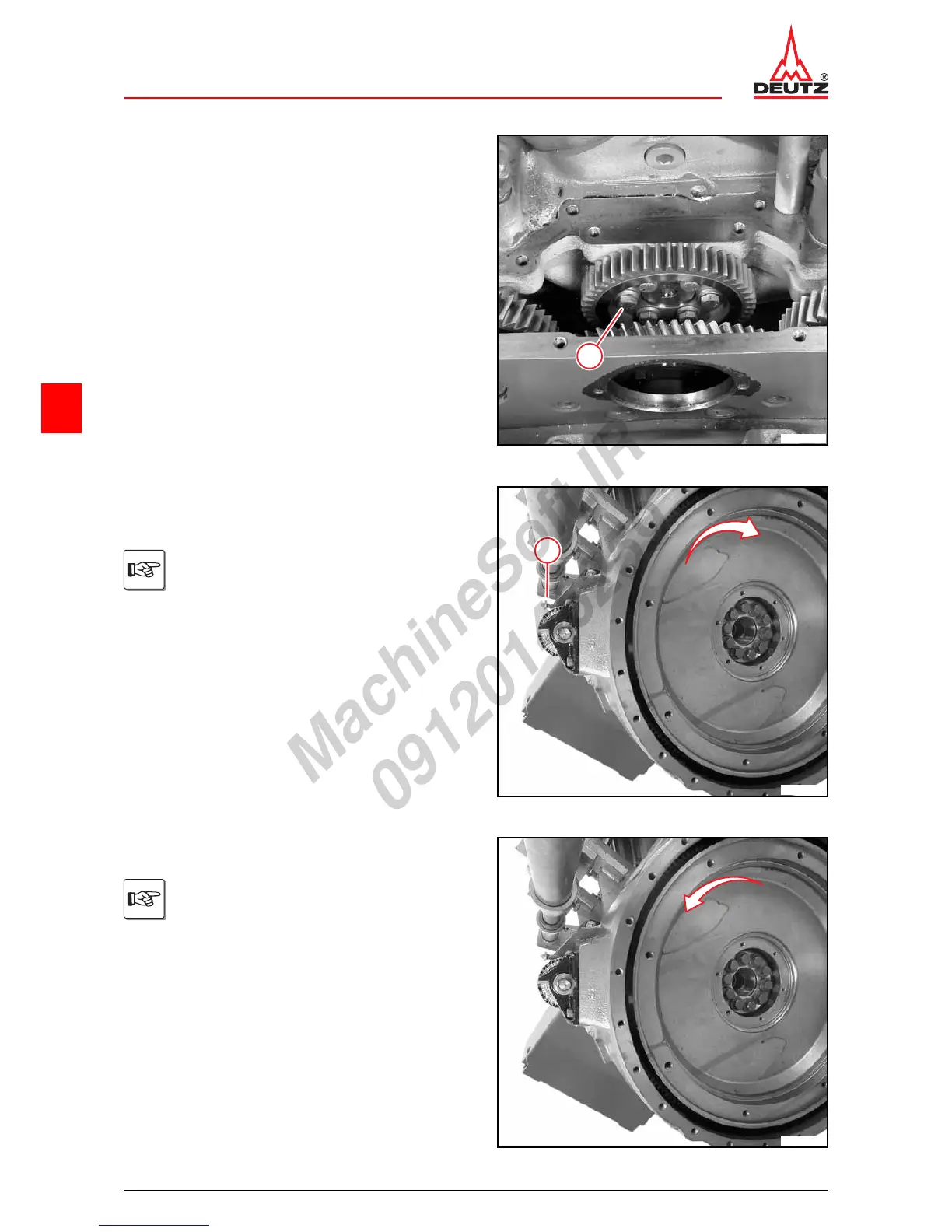

z Loosen all screws (1).
1
© 40464-0
z Pull locking pin (1).
z Turn crankshaft in the opposite direction to the en-
gine rotation (arrow) a ¼ turn with the turning gear.
Dial gauge must read "0" again.
1
© 40501-0
z Set crankshaft with turning gear in engine direction of
rotation (arrow) to ignition TDC, cylinder no. A1.
The locking pin of the turning gear must
snap into the starter gear ring.
© 40502-0
