© 06/2006 8218-001
11/14
TCD 2015
Fuel system
W 07-06-04
6

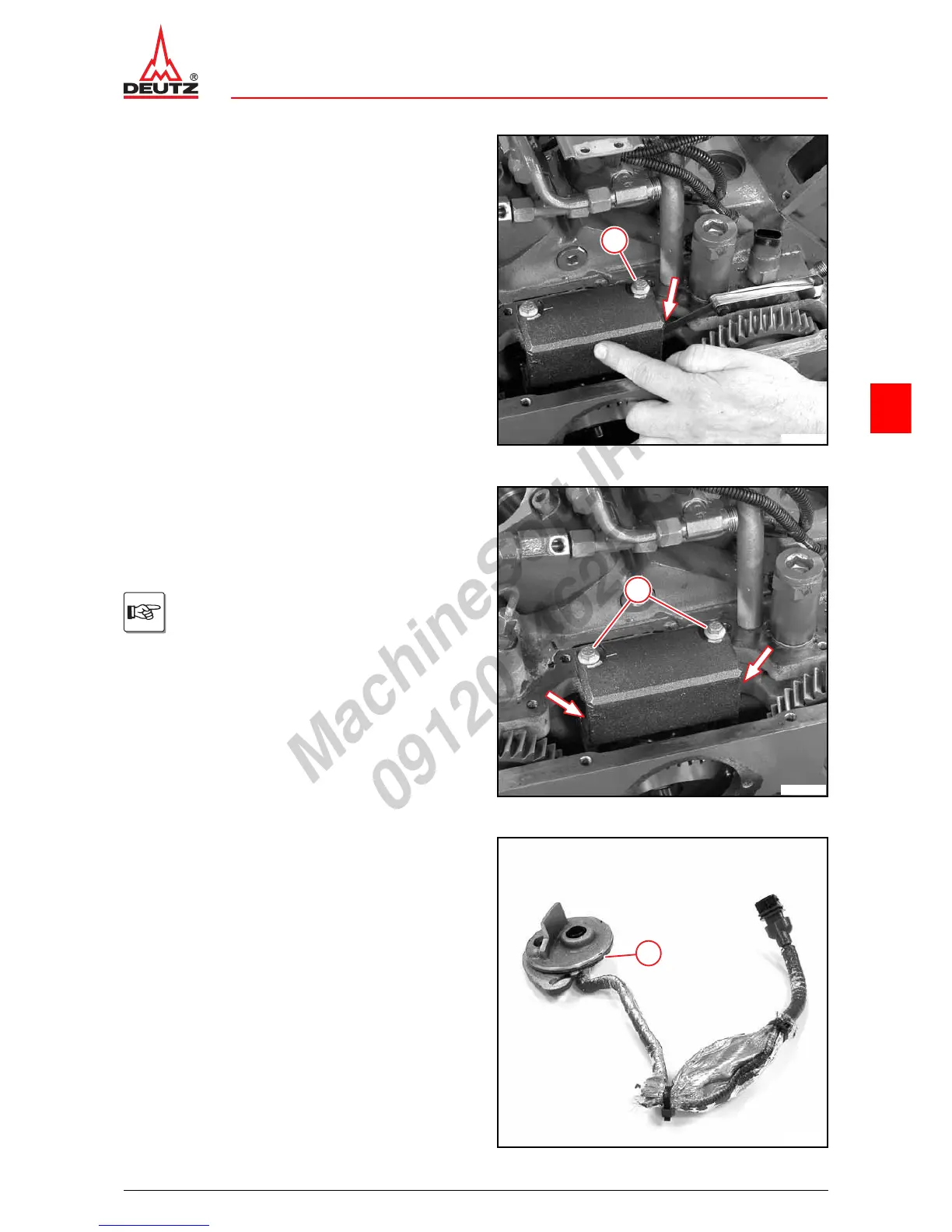

z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40513-0
z Tighten screws (1).
A04 015
z Check axial backlash again.
P04 43
Check axial backlash on both sides bet-
ween
pad thrust bearing and gear
wheel (arrows).
1
© 40514-0
z Clean sealing surfaces.
z Mount new O-ring (1).
z Lightly oil O-ring.
1
© 40515-0
