Fuel system
W 07-01-03
© 06/2006 8211-001
4/6
6

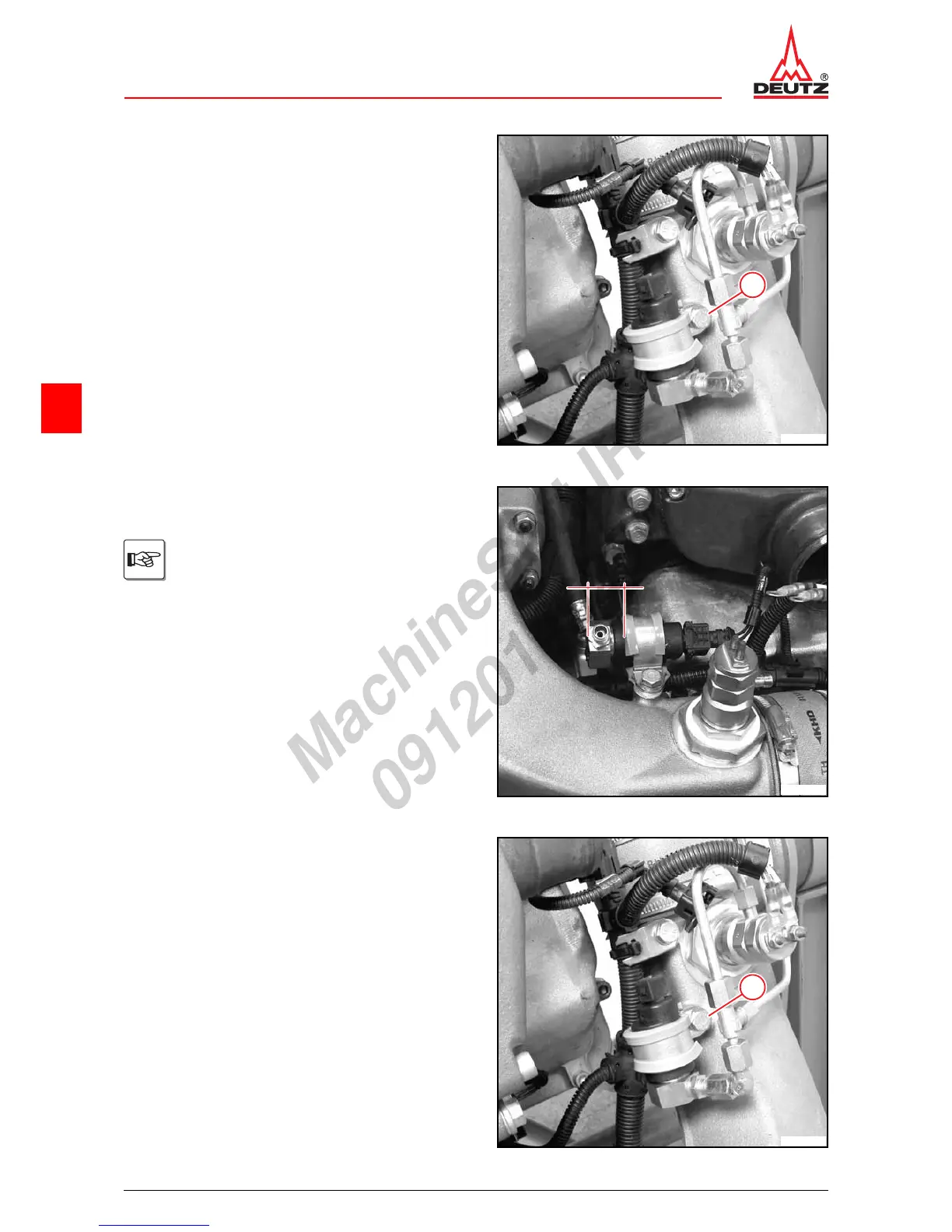

z Position pipe clamp.
z Fasten screw (1).
1
© 42023-2
z Position fuel shut-off valve.
 P07 91
Note installation dimensions (X).
X
© 45909-0
z Tighten screw (1).
 A07 093
1
© 42023-2
