Deutz TCD 2015 - Page 84

TCD 2015
Cylinder head
W 01-01-01
© 06/2006 8150-001
2/4
6

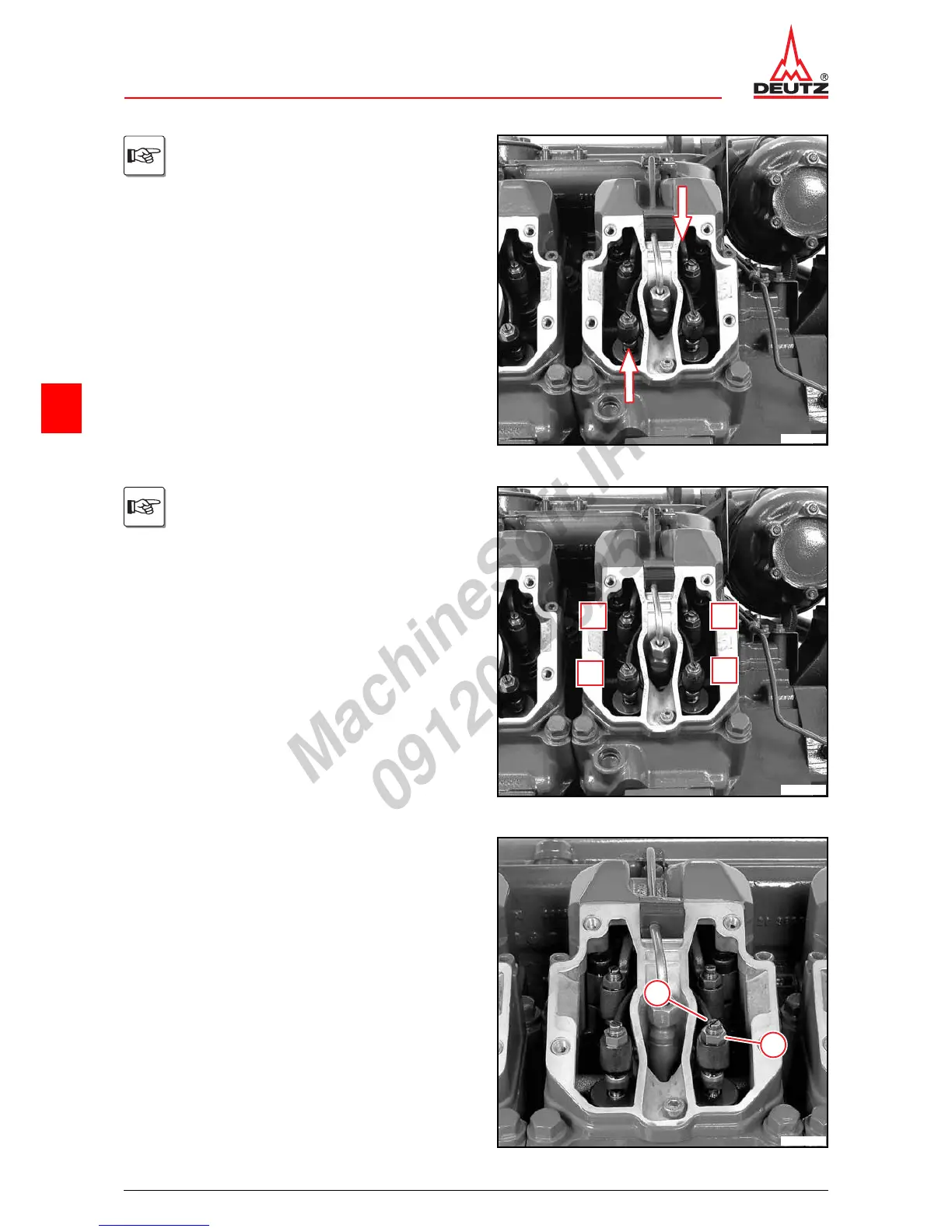

Valve overlap means:
The inlet valve starts opening,exhaust
valve closes.
© 40629-0
Arrangement of the inlet and exhaust val-
ves.
IN = inlet valve
EX = exhaust valve
IN
EX
IN
EX
© 40630-0
Setting valve clearance
z Loosen lock nut (1).
z Press in the adjusting screw (2) to the stop.
2
1
© 40631-0
