TCD 2015
Cylinder head
W 01-01-01
6

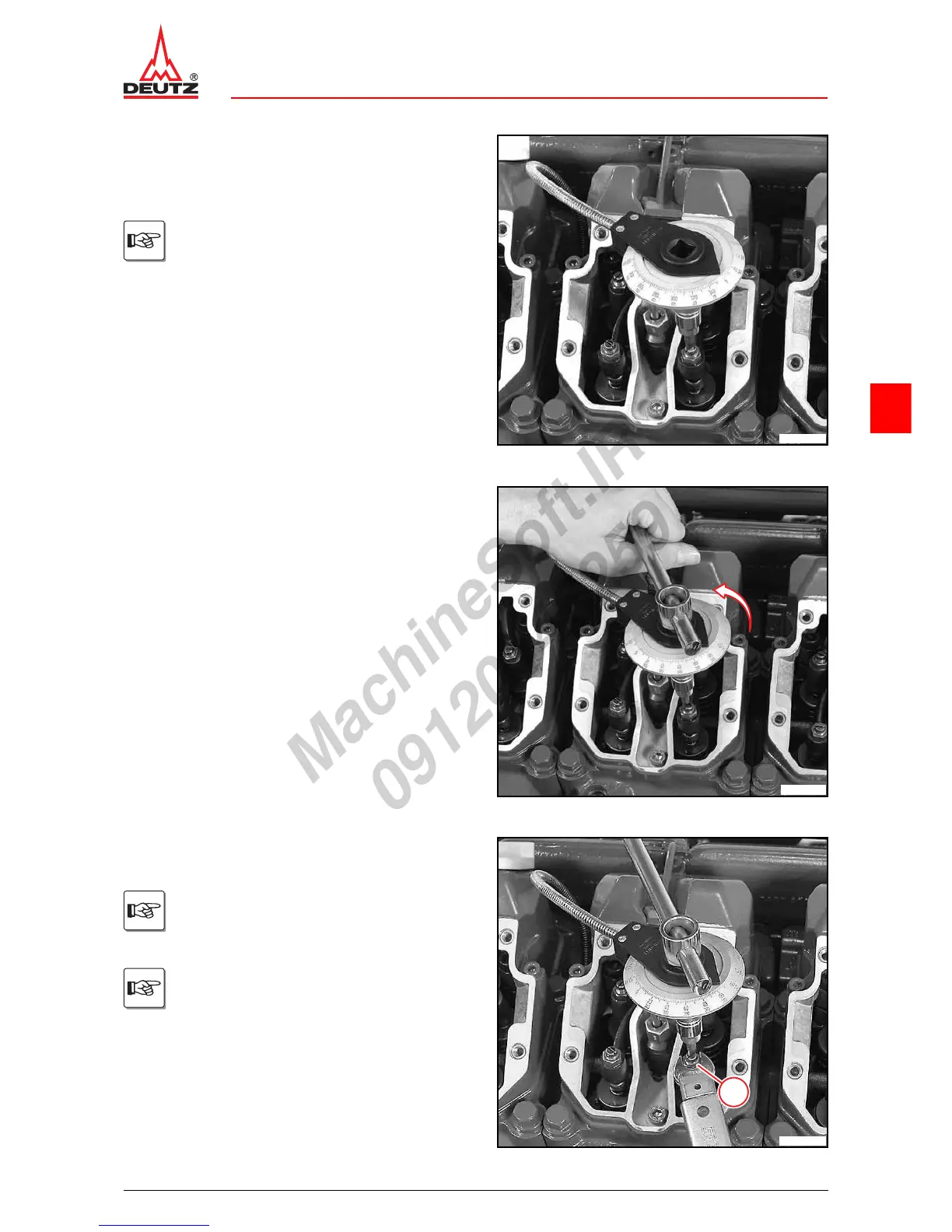

z Set the rotation angle disc with a screwdriver insert
at the adjusting screw.
z Fix magnet of rotation angle disc on cylinder head.
z Set rotation angle disc to "0".
P01 61
P01 62
Do not rotate adjusting screw.
© 40632_1
z Turn the adjusting screw in the direction of the arrow.
P01 62
© 40633-0
z Tighten lock nut (1) with open wrench.
A01 003
z Remove rotation angle disc.
Do not rotate adjusting screw.
Set all other valves according to the valve
setting schematic T01 63.
1
© 40638_1
