TCD 2015
Cylinder head
W 01-01-01
© 06/2006 8150-001
4/4
6

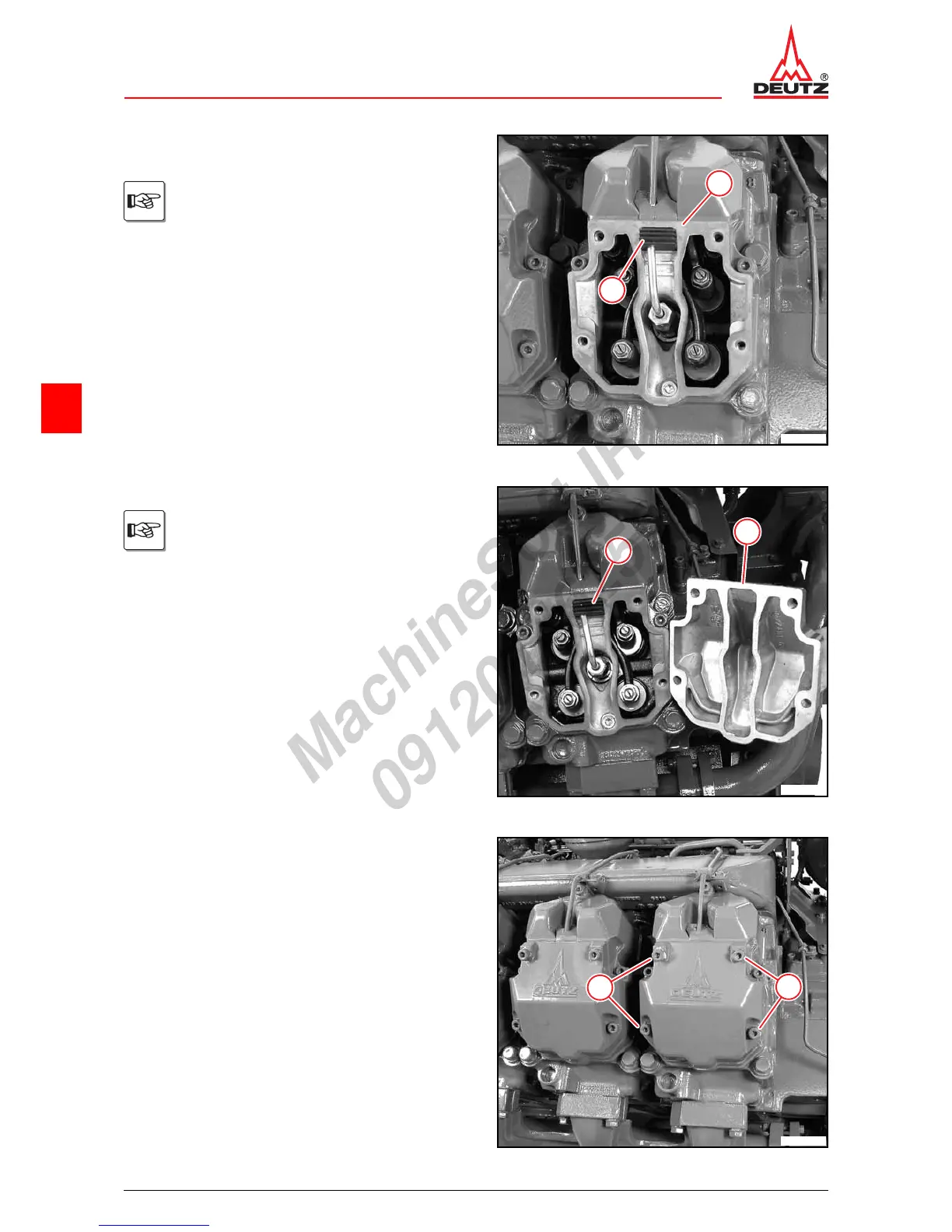

z Clean sealing surfaces.
z Mount new gasket (1).
Note installation position.
Position gasket over the profile washer (2).
1
2
© 40802-0
z Mount cylinder head cover.
Profile washer (1) may not be trapped
underneath the sealing surface (2) of the
cylinder head cover.
2
1
© 40803-0
z Lightly oil screws (1).
z Tighten screws (1).
A01 005
z Remove turning gear.
W 04-06-03
1
1
© 40804-0
