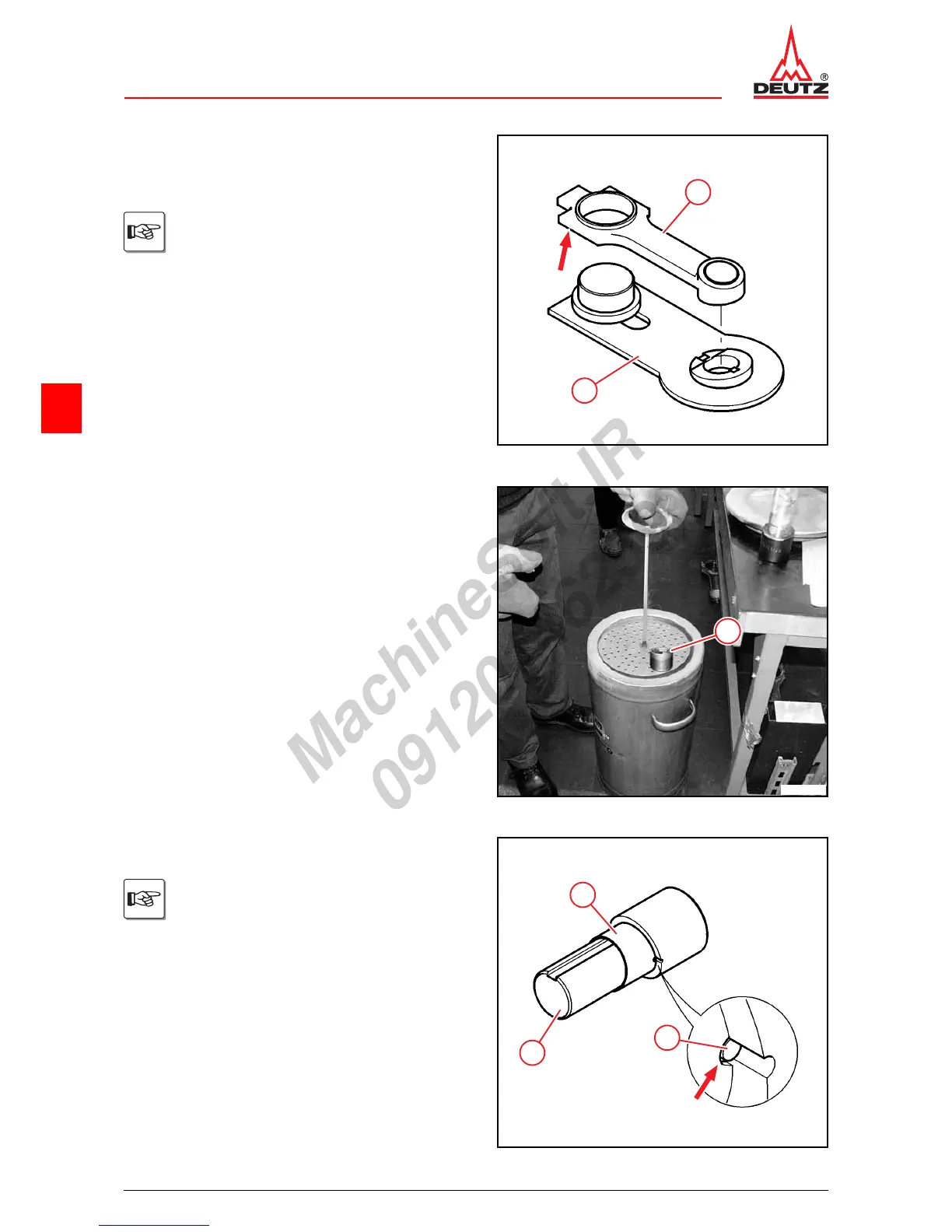

z Heat up the connecting rod (1).
P02 47
z Place the connecting rod on the base plate (2).
The flat side (arrow) of the connecting rod
must face down.
2
1
© 40406-0
z Cool down the small end bush (1) in liquid nitrogen.
P02 46
9
© 36288-3
z Place supercooled small end bush (1) on installation
mandrel (3).
The index pin (2) is sitting correctly in the
groove (arrow) of the small end bush.
3
1
2
© 40407-0
