TCD 2015
Drive system
I 02-03-03
© 06/2006 8168-001
2/6
6

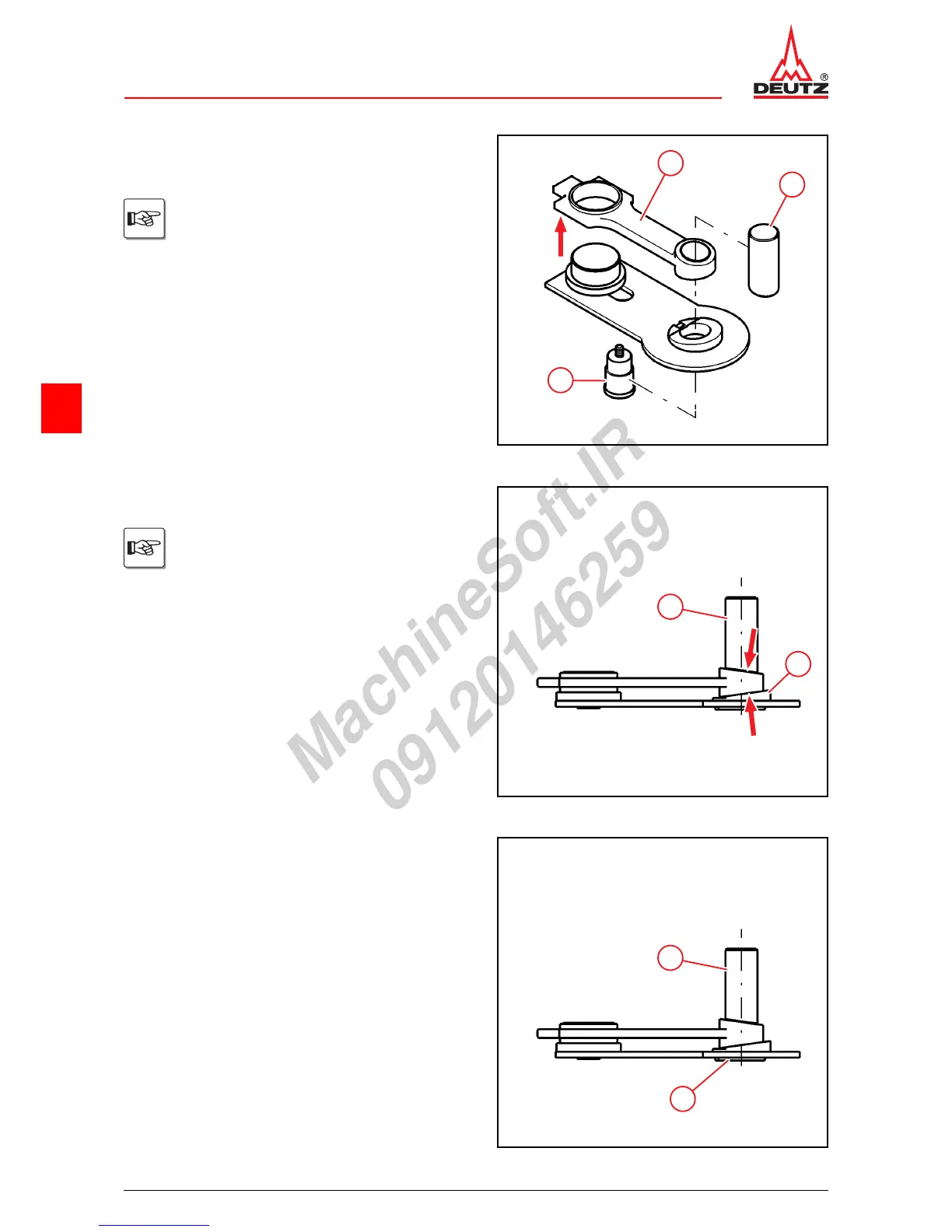

z Insert the bottom part of the assembly tool (3) into the
removal gauge from below.
z Place the connecting rod (1) on the base plate.
z Turn the bottom part (3) into the top part (2) of the as-
sembly tool.
The flat side (arrow) of the connecting rod
must face down.
3
1
2
© 40403-0
z Align the top part (1) of the assembly tool and remov-
al gauge (2).
The top part of the assembly tool and the
removal gauge are level with the angled
surfaces (arrows) of the big end bearing.
1
2
© 40401-0
z Screw the top part (1) and bottom part (2) of the as-
sembly tool together.
1
2
© 40402-0
