Deutz TCD 2015 - Page 426

TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
© 06/2006 8205-001
2/6
6

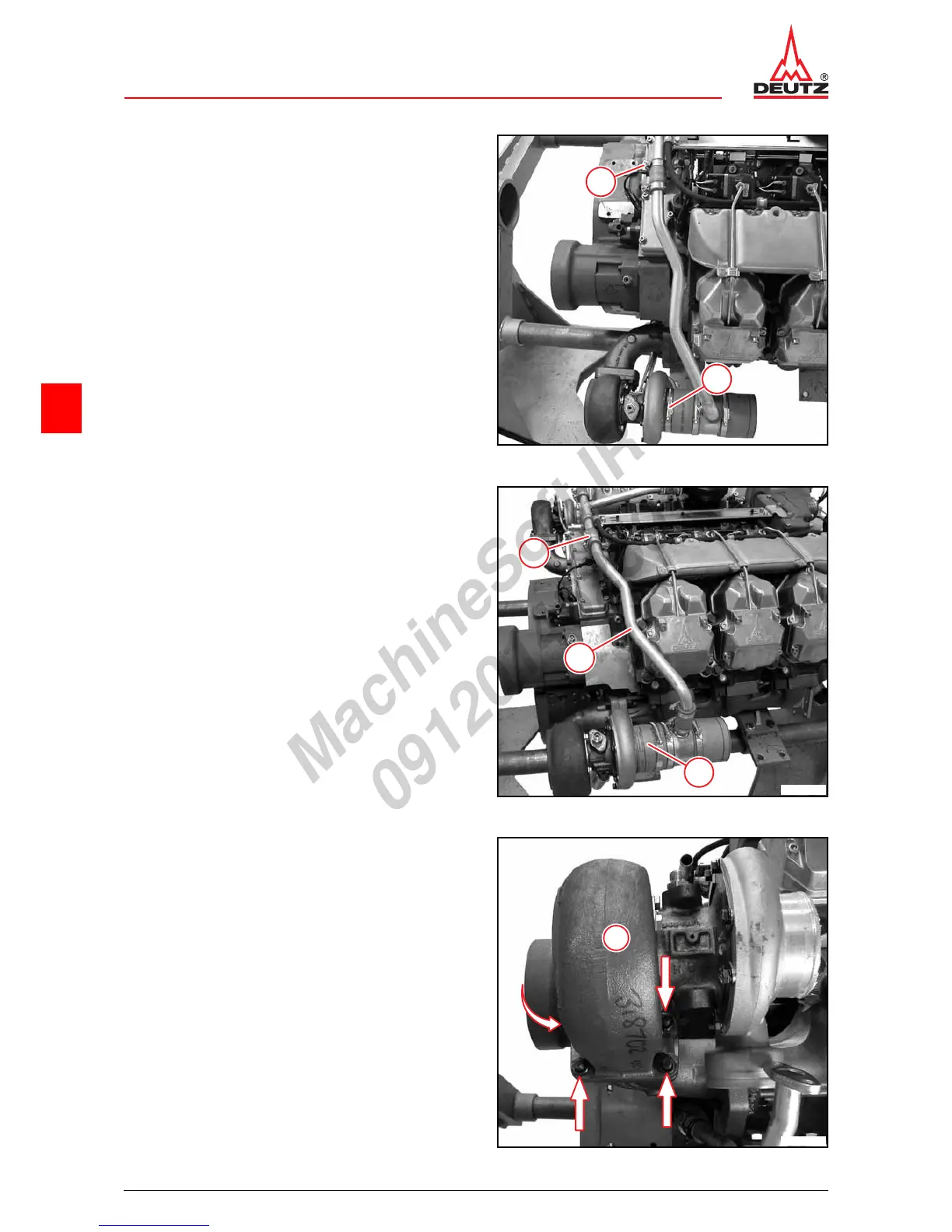

z Loosen hose clip (1).
z Loosen hose clip (2).
2
1
© 42059-2
z Pull off tubing connection (1).
z Pull off bleeding hose (2).
z Remove breather pipe (3).
1
2
3
© 42058-2
z Unscrew nuts (arrows).
z Remove turbocharger (1).
1
© 42055-1
