© 06/2006 8205-001
3/6
TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
6

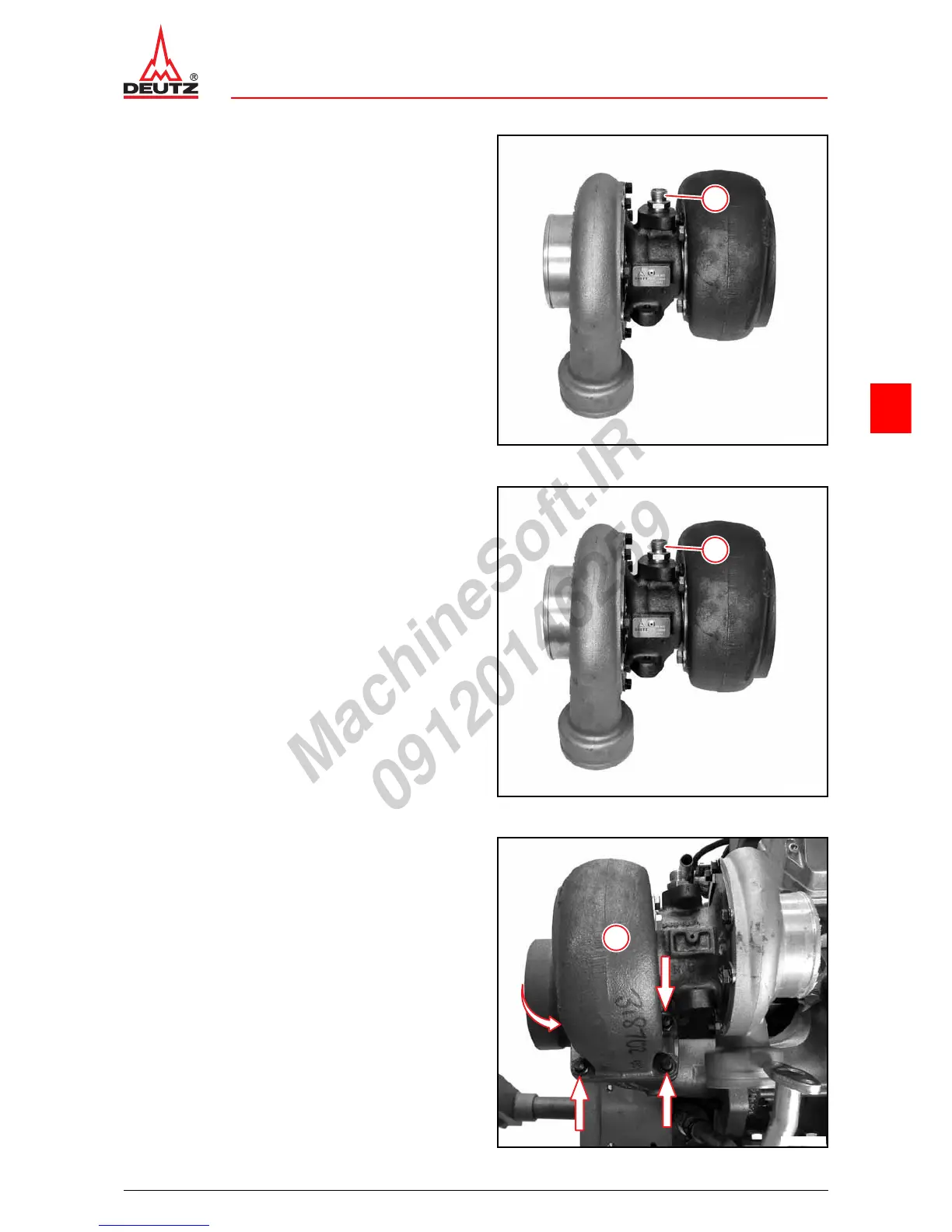

z Unscrew screw-in nipple (1).
z Remove sealing ring.
z Visually inspect the components.
1
© 42054-1
Installing the turbocharger
z Mount new sealing ring.
z Tighten screw-in nipple (1).
A12 098
1
© 42054-1
z Clean sealing surfaces.
z Mount turbocharger (1).
z Tighten nuts (arrows).
A06 020
1
© 42055-1
