Deutz TCD 2015 - Page 428

TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
© 06/2006 8205-001
4/6
6

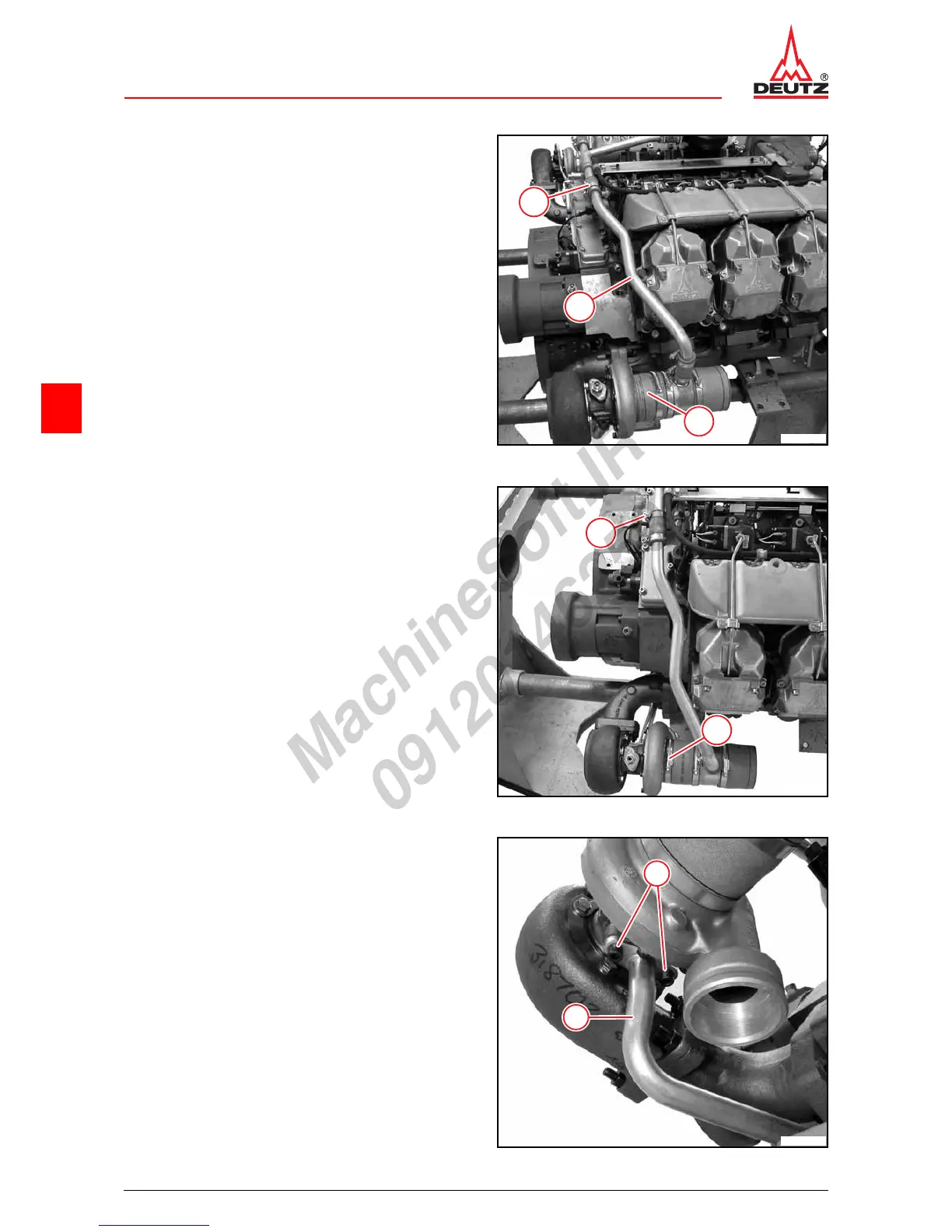

z Mount breather pipe (3).
z Plug in breather pipe (2).
z Plug in the tubing connection (1).
1
2
3
© 42058-2
z Position hose clip (1).
z Tighten hose clip (1).
 A03 070
z Position hose clip (2).
z Tighten hose clip (2).
 A06 024
2
1
© 42059-2
z Mount new gasket.
z Mount oil return pipe (2).
z Tighten screws (1).
 A08 044
1
2
© 42057-1
