TCD 2015
Drive system
W 02-09-03
© 06/2006 8170-001
2/8
6

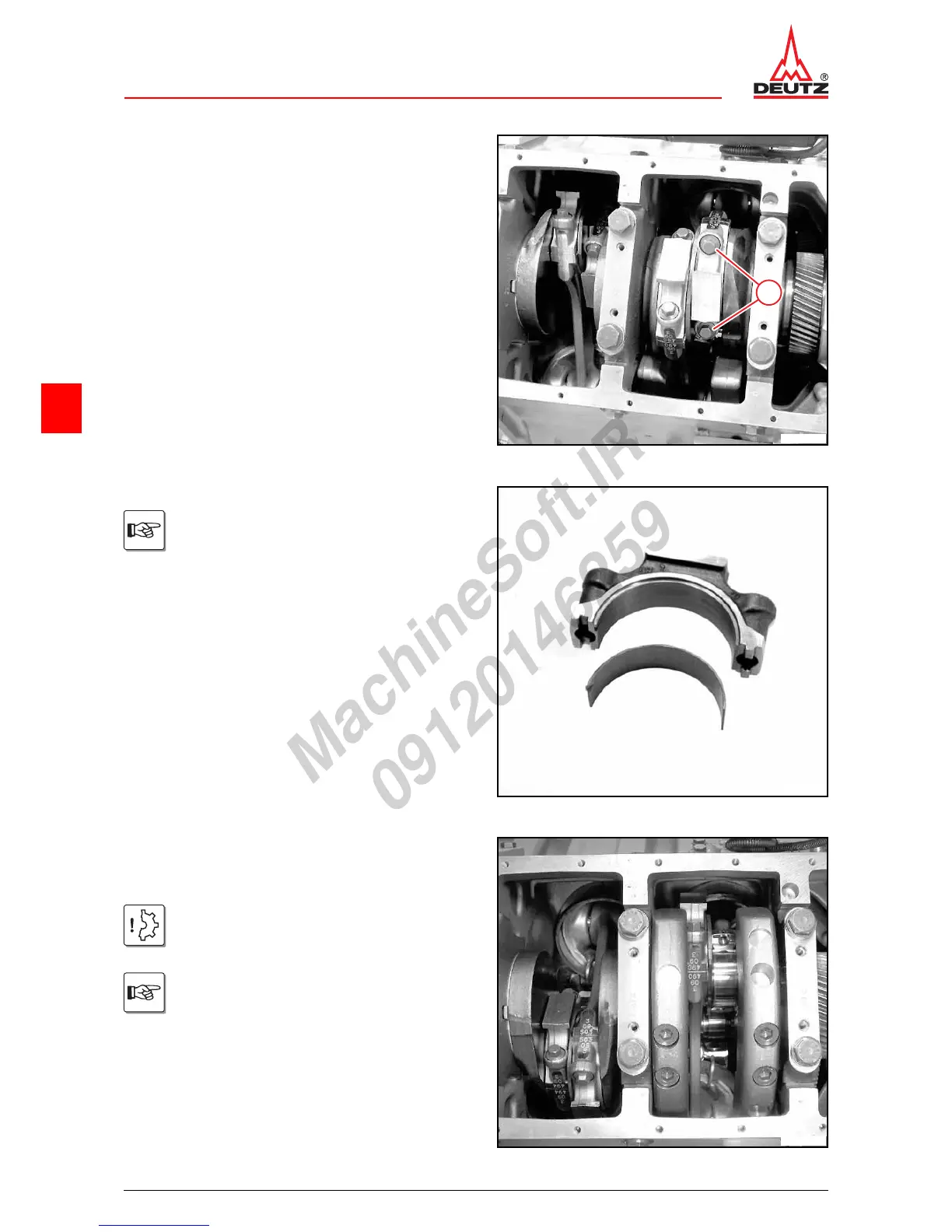

z Set piston at bottom dead centre (BDC).
z Unscrew screws (1) with the socket wrench insert.
1
© 42375-1
z Remove big end bearing cover with bearing shell.
T00 81
z Visually inspect the components.
Lay out components in the order in which
they should be installed.
Note order of cylinders.
© 40821-0
z Set piston at top dead centre (TDC).
z Remove bearing shell.
z Press out the piston and connection rod.
Attention!
Do not jam the connecting rod in the cylin-
der liner when removing!
Lay out components in the order in which
they should be installed.
Note order of cylinders.
© 42376-1
