TCD 2015
Crankcase
W 03-08-01
© 06/2006 8178-001
6/14
6

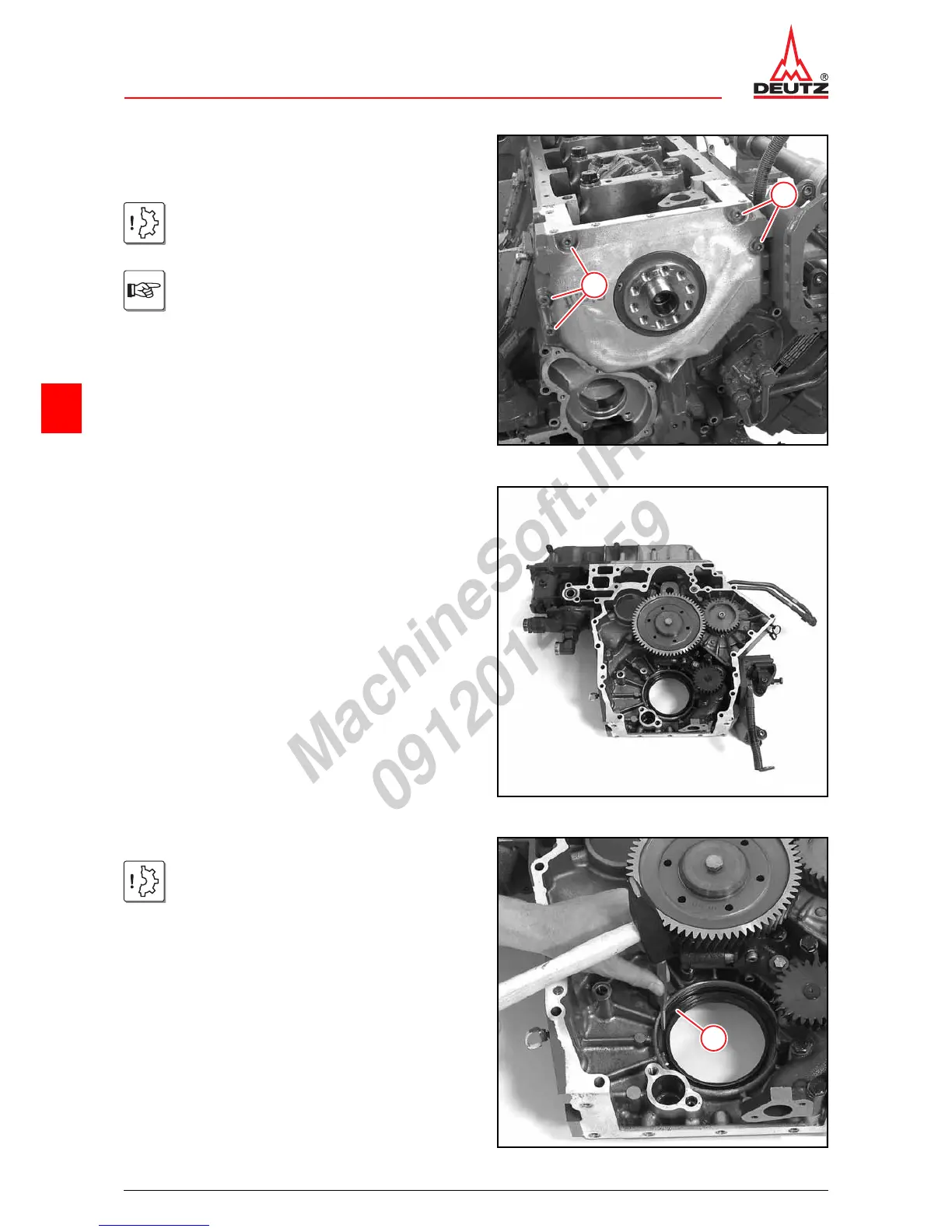

z Unscrew screws (1).
z Remove genset support.
z Remove gasket.
Attention!
Do not damage the crankshaft journal
when removing the genset support.
The teeth of the oil pump gears and the
idler gear must grip the teeth of the cranks-
haft drive wheel.
Use suitable workshop crane.
1
1
© 40542-0
z Visually inspect the components.
© 40543-0
z Knock out crankshaft sealing ring (1).
Attention!
Do not damage sealing surface when
knocking out.
1
© 40544-0
