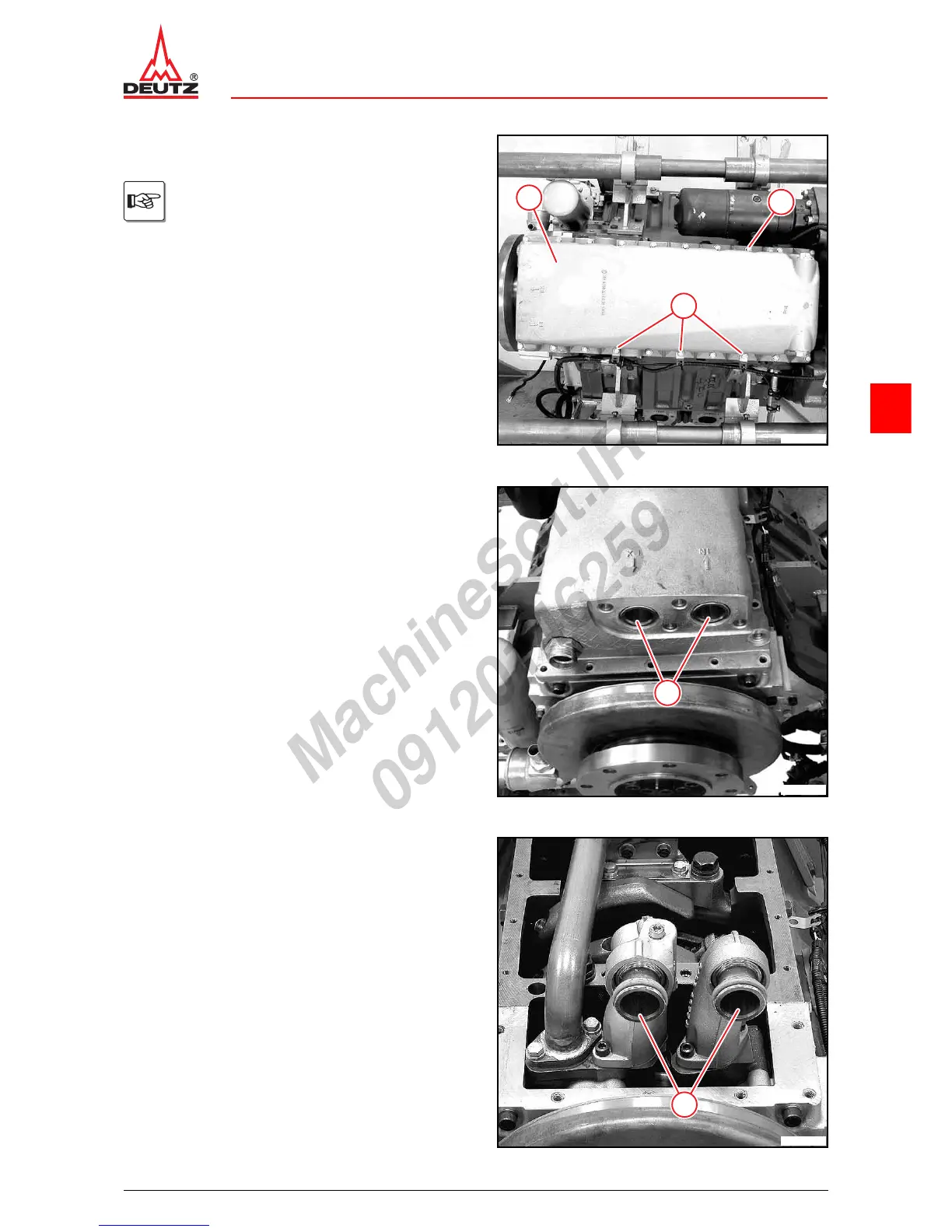

TCD 2015 Railway
Lube oil system
W 08-04-07
6
z Unscrew all screws (1).
z Remove cables (2).
z Loosen lubricating oil pan.
The holders (3) remain on the cables.
3
1
2
© 45861-0
z Pull lubricating oil pan in direction of arrow.
z Remove lubricating oil pan.
z Remove gasket.
z Visually inspect the components.
1
© 45868-0
z Pull out plug elements (1).
1
© 45862-0
