TCD 2015 Railway
Lube oil system
W 08-04-07
© 06/2006 8231-001
2/10
6

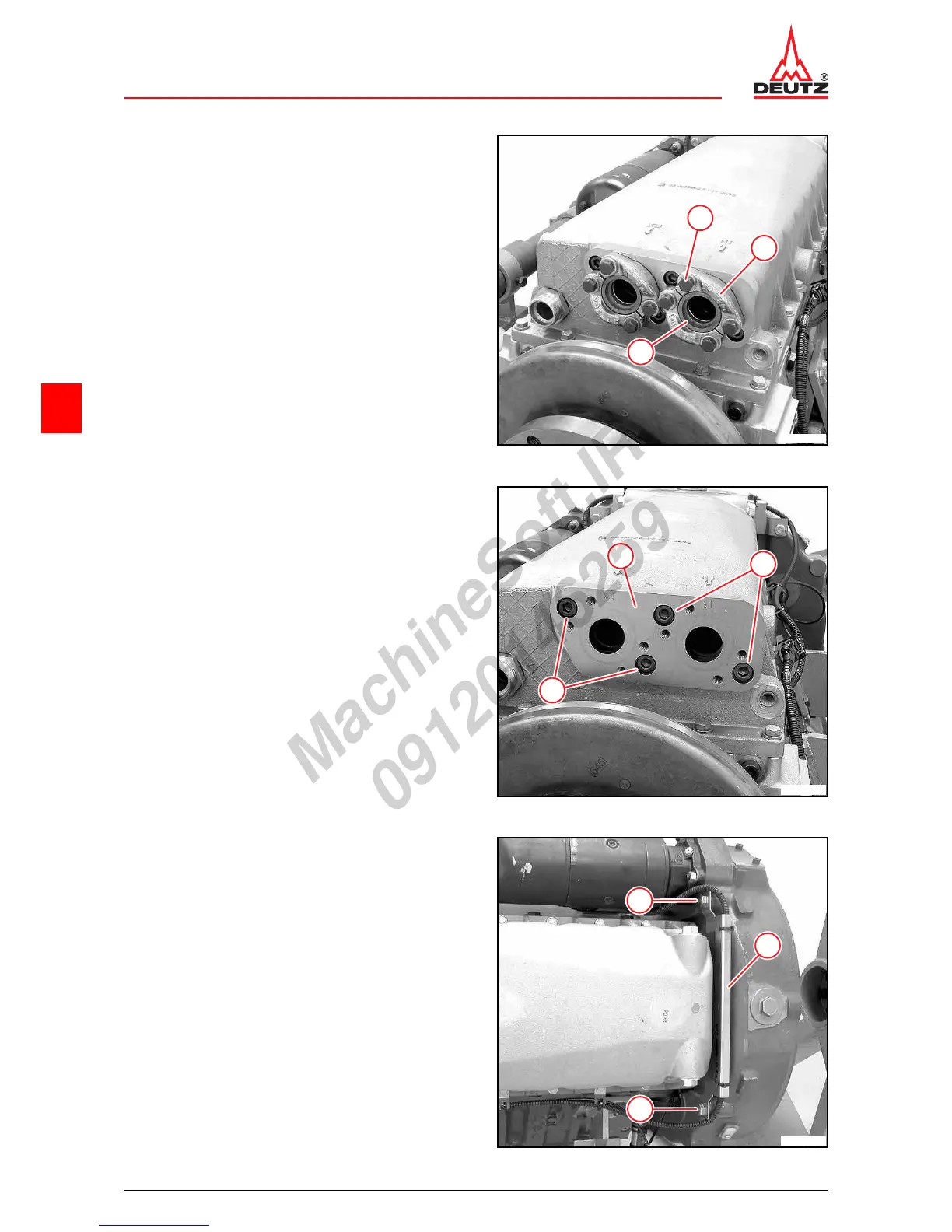

z Unscrew all screws (1).
z Remove washers.
z Remove all half-flanges (2).
z Remove both flanged sockets (3).
3
1
2
© 45867-0
z Unscrew screws (1).
z Remove connecting flange (2).
1
2
1
© 42441-1
z Unscrew screws (1).
z Remove the holder (2).
1
1
2
© 42442-1
