TCD 2015
Cylinder head
W 01-05-01
6

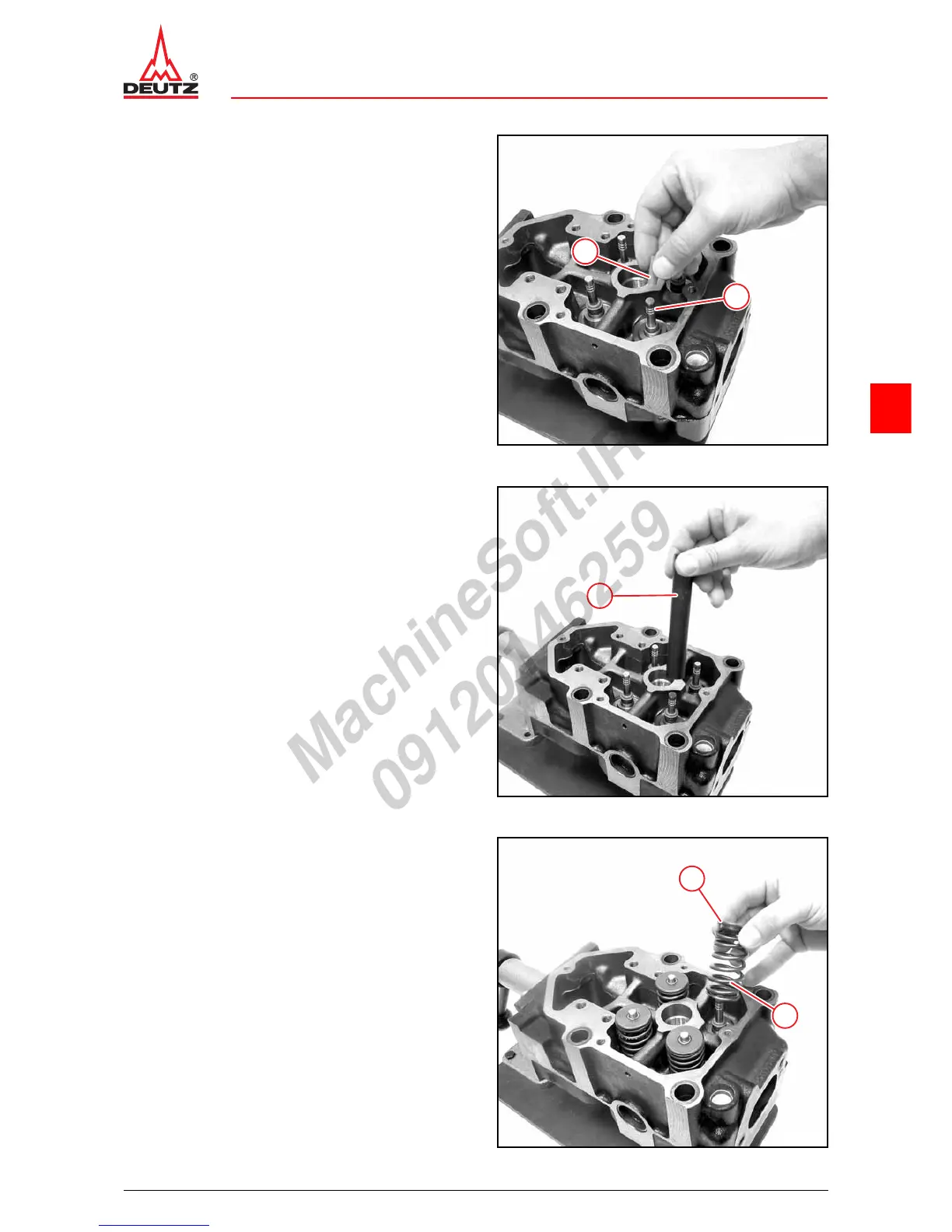

z Oil the valve stem lightly.
z Insert and hold valve.
z Push assembly sleeve (2) over the valve V-
grooves (1).
1
2
© 42334-1
z Push new valve stem seal onto valve guide over the
assembly sleeve with assembly tool (1).
z Remove assembly sleeve.
1
© 42332-1
z Insert valve spring (1).
z Insert valve spring plate (2).
1
2
© 42331-1
