TCD 2015
Cylinder head
I 01-06-04
© 06/2006 8159-001
4/6
6

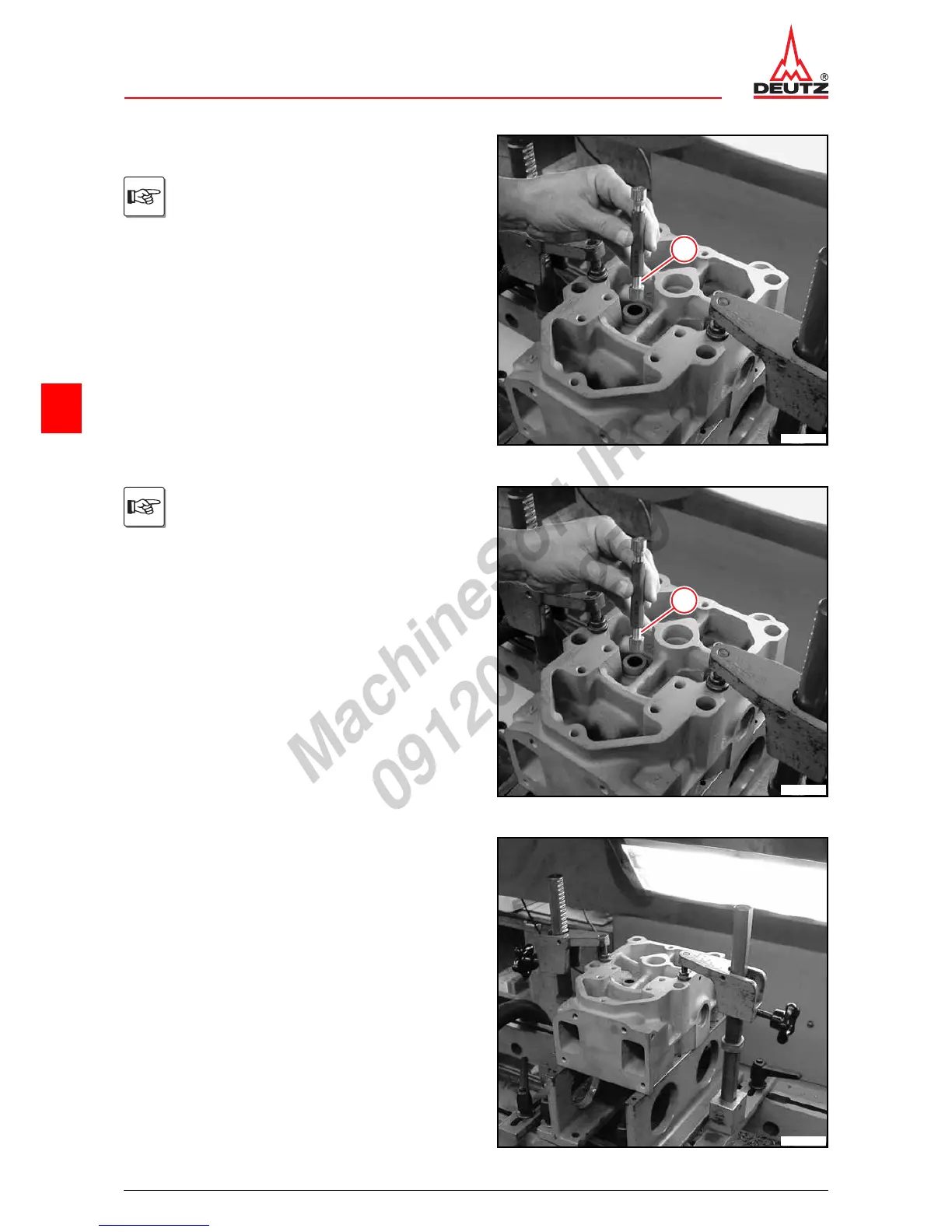

z Check housing bore for valve guide with plug
gauge (1).
Use corresponding plug gauge.
The target area of the plug gauge must be
able to move upwards and downwards with
light suction.
1
© 39750-1
P01 06
P01 07
The no-go limit of the gauge plug (1) must
not fit into the housing bore.
If the no-go limit fits, it must be reamed to
the next oversize.
When the wear limit of the 2nd oversize
stage is reached, the cylinder head must
be renewed.
1
© 39750-1
z Unclamp cylinder head.
z Blast cylinder head clean with compressed air.
© 39751-1
