© 06/2006 8161-001
7/8
TCD 2015
Cylinder head
I 01-07-09
6

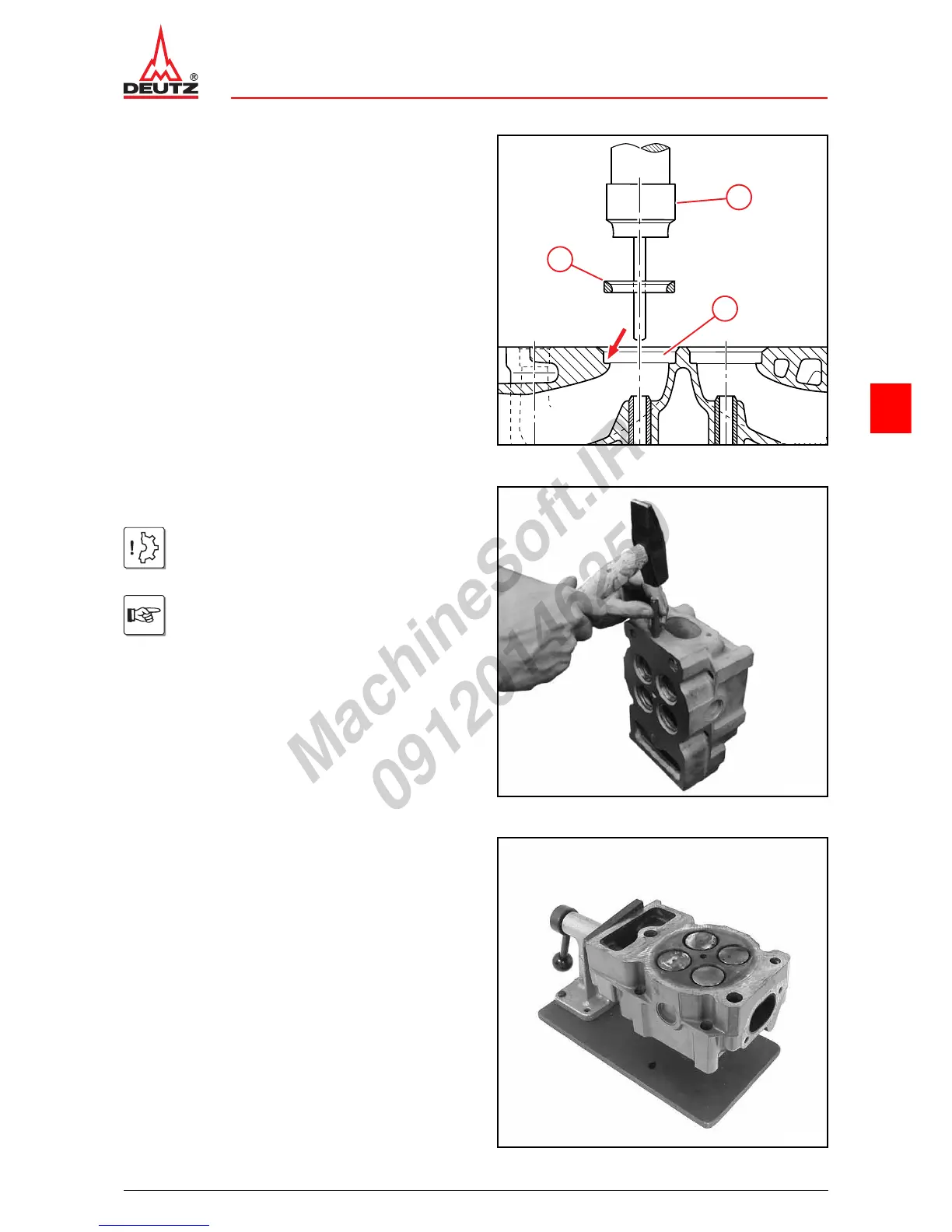

z Press the valve seat insert (1) with press-in pin (2)
into the housing bore (3) until it is in position (arrow).
z Remove the cylinder head.
z Machine valve seat insert.
1
3
2
© 36633-1
z Attach the repair date and company logo to the cylin-
der head.
Attention!
Do not mark identification on a sealing sur-
face.
Mark the cylinder head after every repair.
© 39744-1
z Install valves.
W 01-05-01
z Check valve stand back.
W 01-07-08
© 40639-0
