© 06/2006 8167-001
7/10
TCD 2015
Drive system
W 02-03-01
6

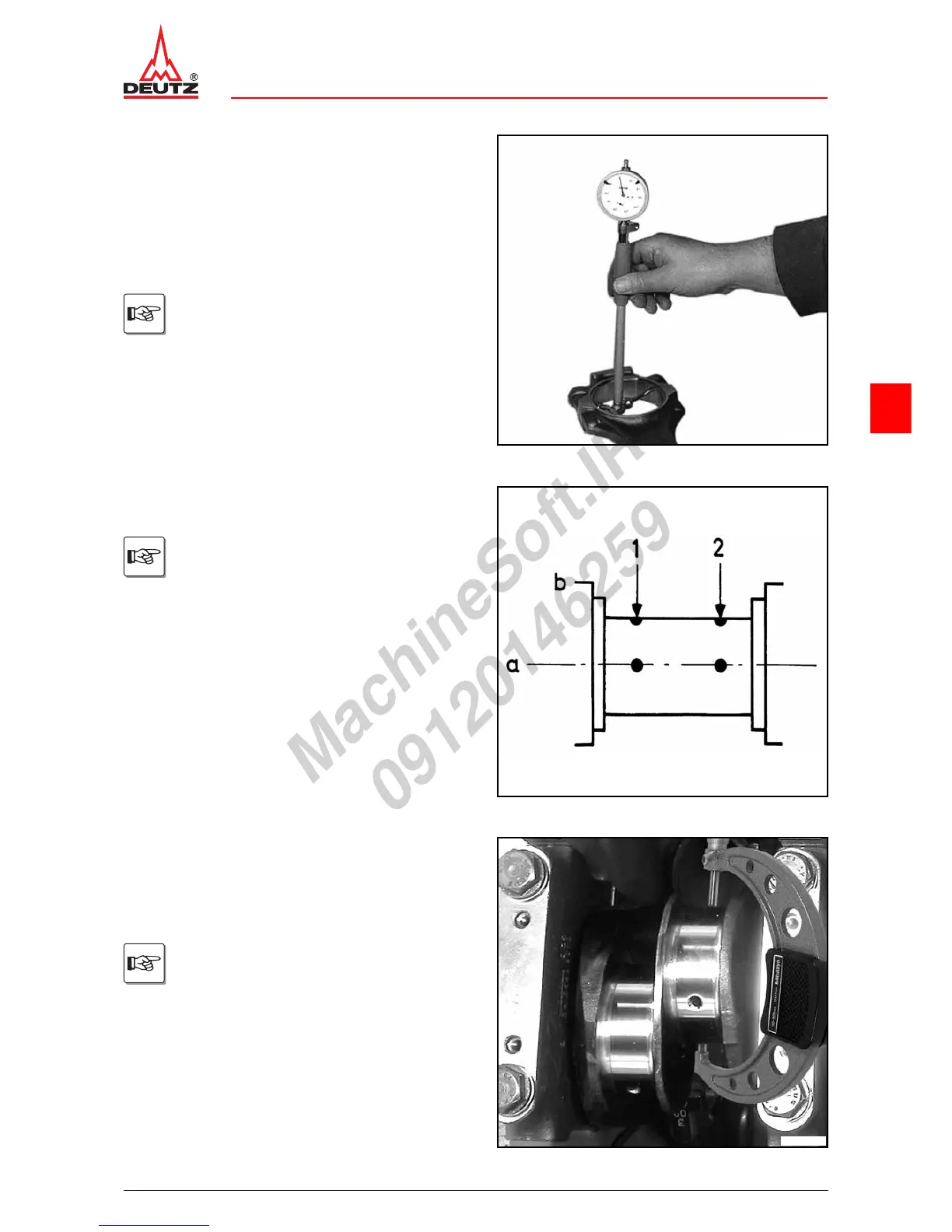

z Insert internal measuring device.
z Balance the internal measuring device at the given
measuring points and read off the measured value at
the reversal point of the pointer.
z Note measured value, dimension (a).
P02 52
P02 54
If the values up to maximum 0.015 mm are
above the bearing tolerances, the connec-
ting rod can still be used.
When the limit value is reached, the con-
necting rod must be replaced.
© 34775-2
Checking the diameter of the lifting jour-
nals
Diagram for measuring the journals at the
points 1 and 2 in the levels a and b.
© 36424-2
z Measure lifting journal with micrometer gauge.
P02 22
P02 23
P02 25
z Note measured value, dimension (b).
Measuring points see diagram.
© 45399-0
