TCD 2015
Drive system
W 02-10-03
© 06/2006 8172-001
2/4
6

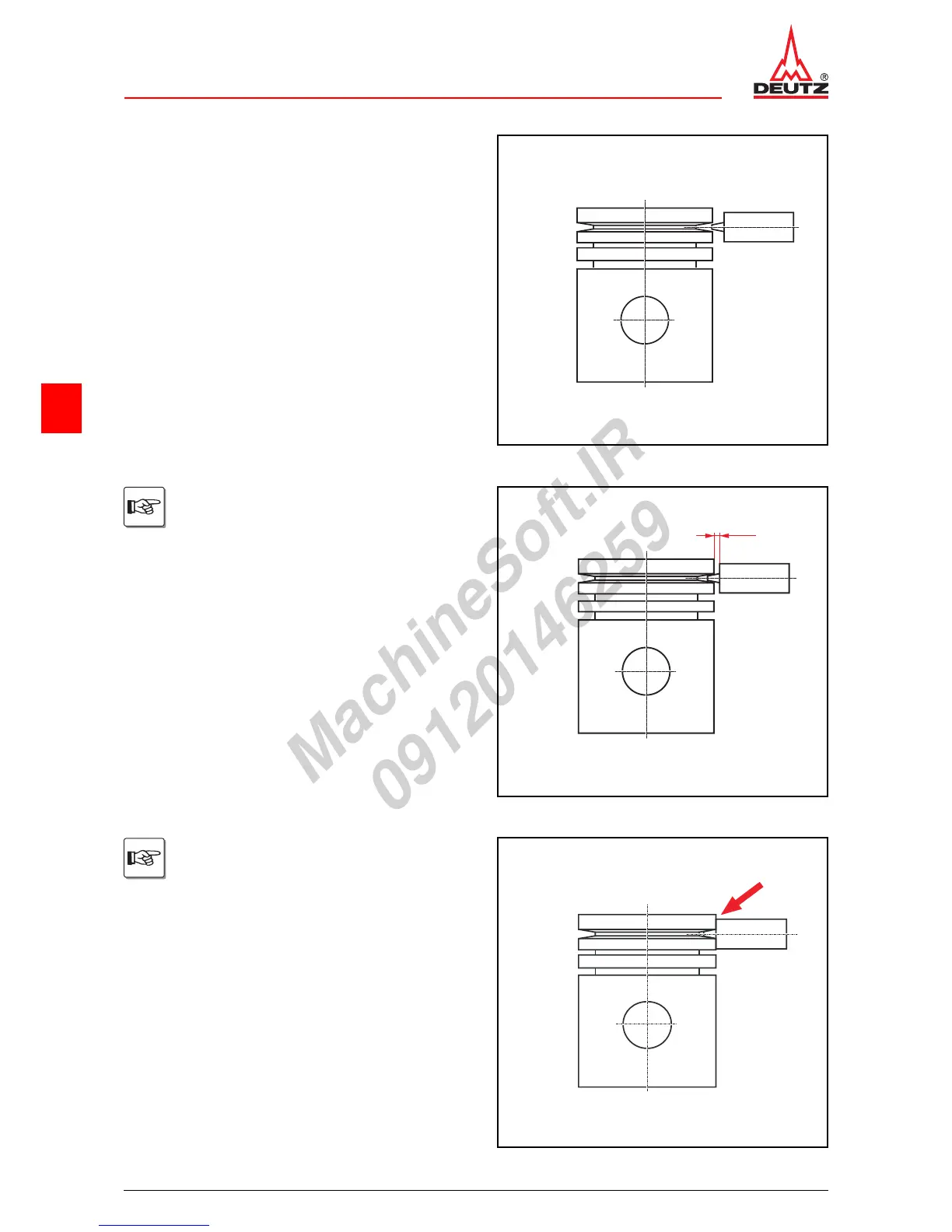

z Measure piston ring groove for first piston ring with
trapezoidal groove wear gauge.
© 33866-2
If there is a gap "S" between the trapezoi-
dal groove wear gauge and piston, the
piston can be used again.
S
© 33867-2
If the trapezoidal groove wear gauge is
touching the piston (arrow), the piston
must be changed.
© 33868-2
