TCD 2015
Crankcase
W 03-01-11
© 06/2006 8174-001
4/6
6

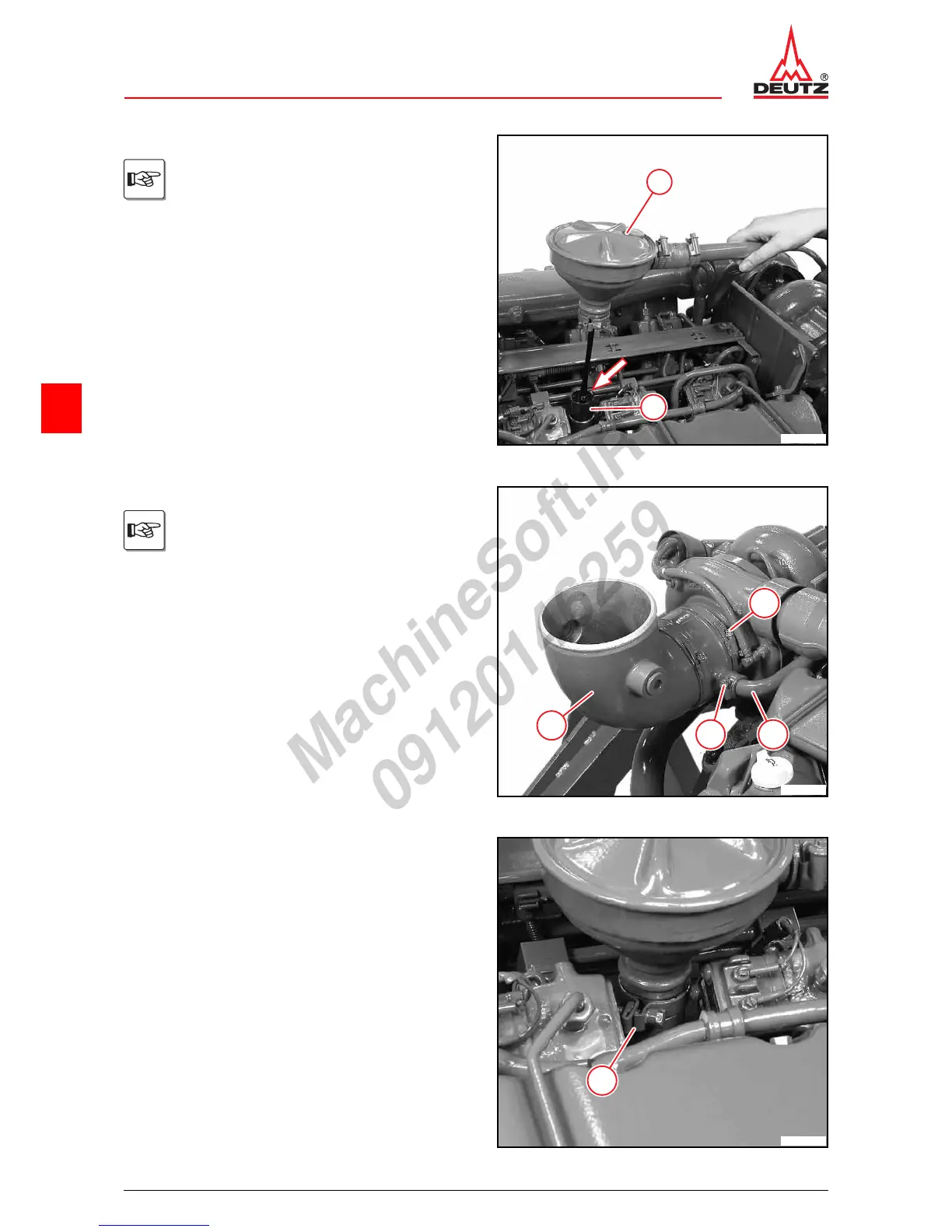

z Insert oil separator (1) in flanged pipe (2).
Do not move the spring (arrow).
1
2
© 40672-0
z Mount intake elbow (4).
z Position hose clip (1).
z Tighten hose clip (1).
A06 021
z Mount pipe (3).
z Position hose clip (2).
z Tighten hose clip (2).
A03 064
Note installation position.
4
32
1
© 45807-0
z Position pipe clamp (1).
z Tighten pipe clip (1).
A03 060
1
© 45808-0
