TCD 2015
Crankcase
W 03-08-03
6

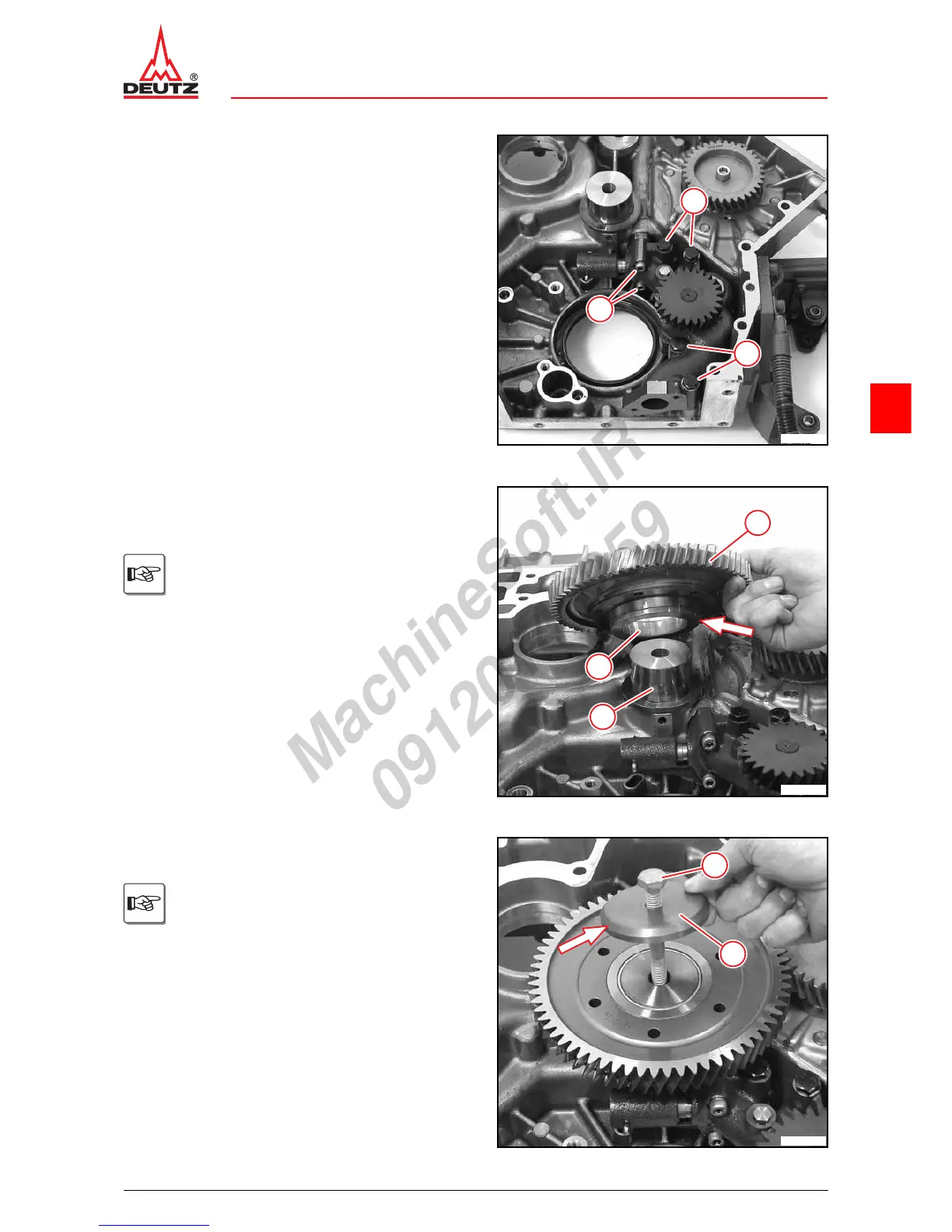

z Tighten screws (1).
A08 010
z Tighten screws (2).
A08 011
1
1
2
© 40648-0
z Lightly oil journal (1).
z Lightly oil bearing bush (2).
z Mount idler gear (3).
The collar (arrow) of the idler gear faces
the genset support.
1
2
3
© 40529-0
z Mount thrust washer (2).
z Fasten screw (1).
The bevelled side (arrow) of the thrust
washer must face upwards.
1
2
© 40530-0
