Deutz TCD 2015 - Page 261

© 06/2006 8181-001
5/6
TCD 2015
Crankcase
W 03-09-04
6

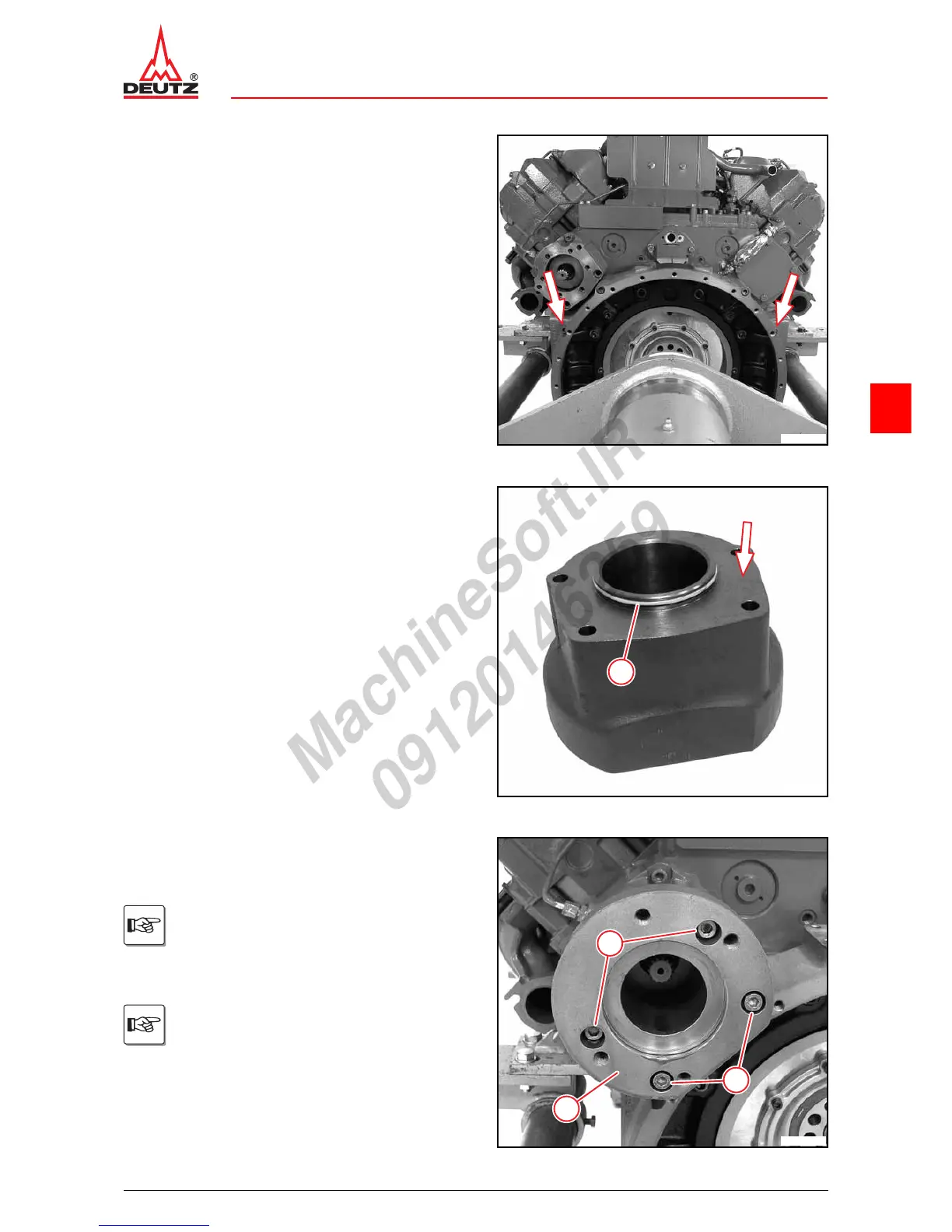

z Tighten screws (arrows).
 A03 089
© 40697-0
z Mount new O-ring (1).
z Coat lay-on surface (arrow) with locking agent.
1
© 45409-0
z Mount flange housing (3).
z Lightly oil screws (1).
z Tighten screws (1).
z Insert screws (2) with locking agent.
z Tighten screws (2).
z Tighten screws (1).
 A12 058
Screw length:
M10x110mm
Screw length:
M10 x 210 mm
1
3
2
© 40692-0
