© 06/2006 8183-001
7/8
TCD 2015
Crankcase
W 03-11-01
6

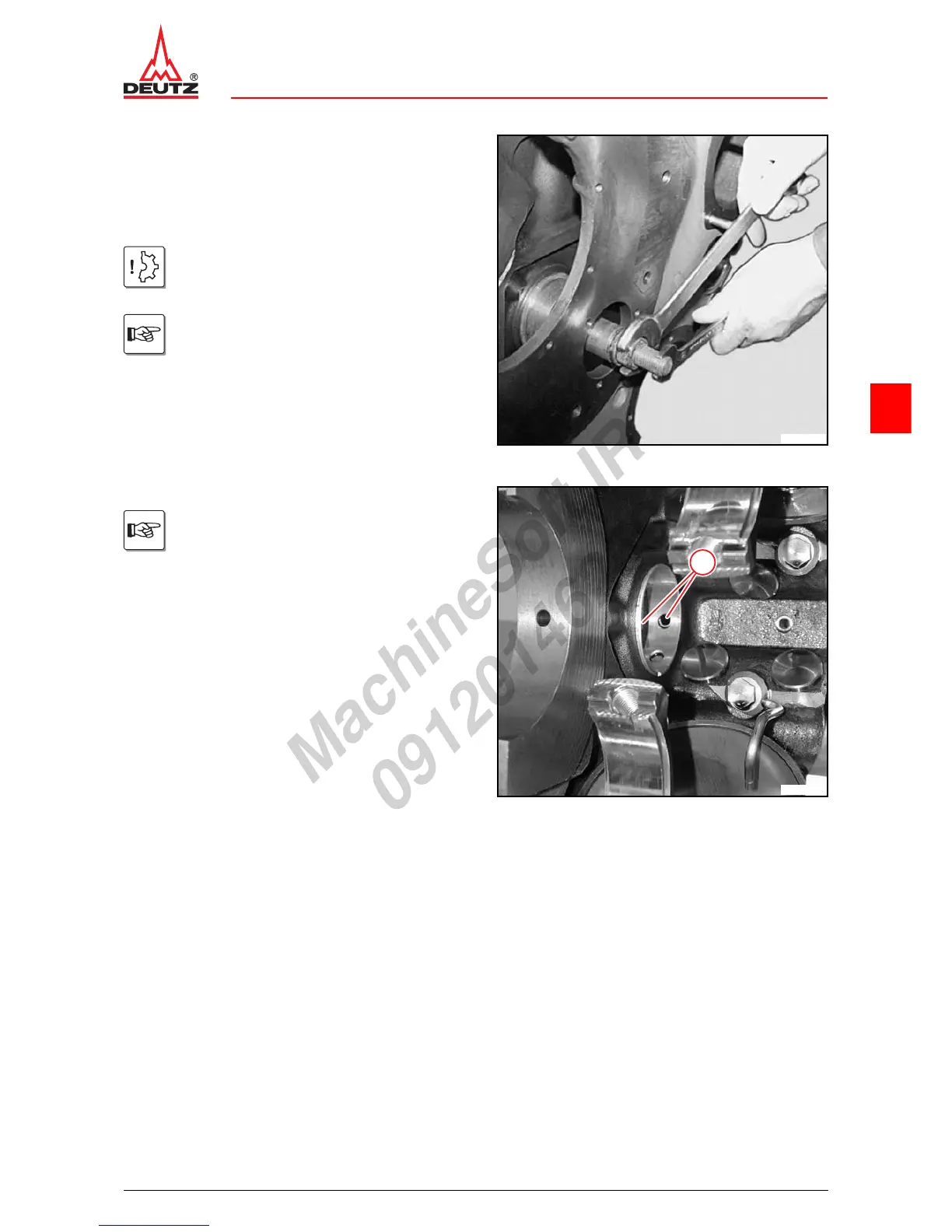

z Mount counter bearing.
z Mount spacing sleeve.
z Mount ball bearing.
z Screw on nut.
z Insert the camshaft bearings one after another.
Attention!
Do not damage the camshaft bearings
when moving the assembly tool!
Installation depth, see diagram.
© 34714-2
z Check that the lubricating oil bores (1) are in line.
z Install the camshaft.
W 04-05-05
If the lubricating oil bore is not in line, the
camshaft bearing must be removed and re-
installed.
1
© 40901-0
