Deutz TCD 2015 - Page 288

TCD 2015 Railway
Engine control
W 04-04-09
© 06/2006 8186-001
2/6
6

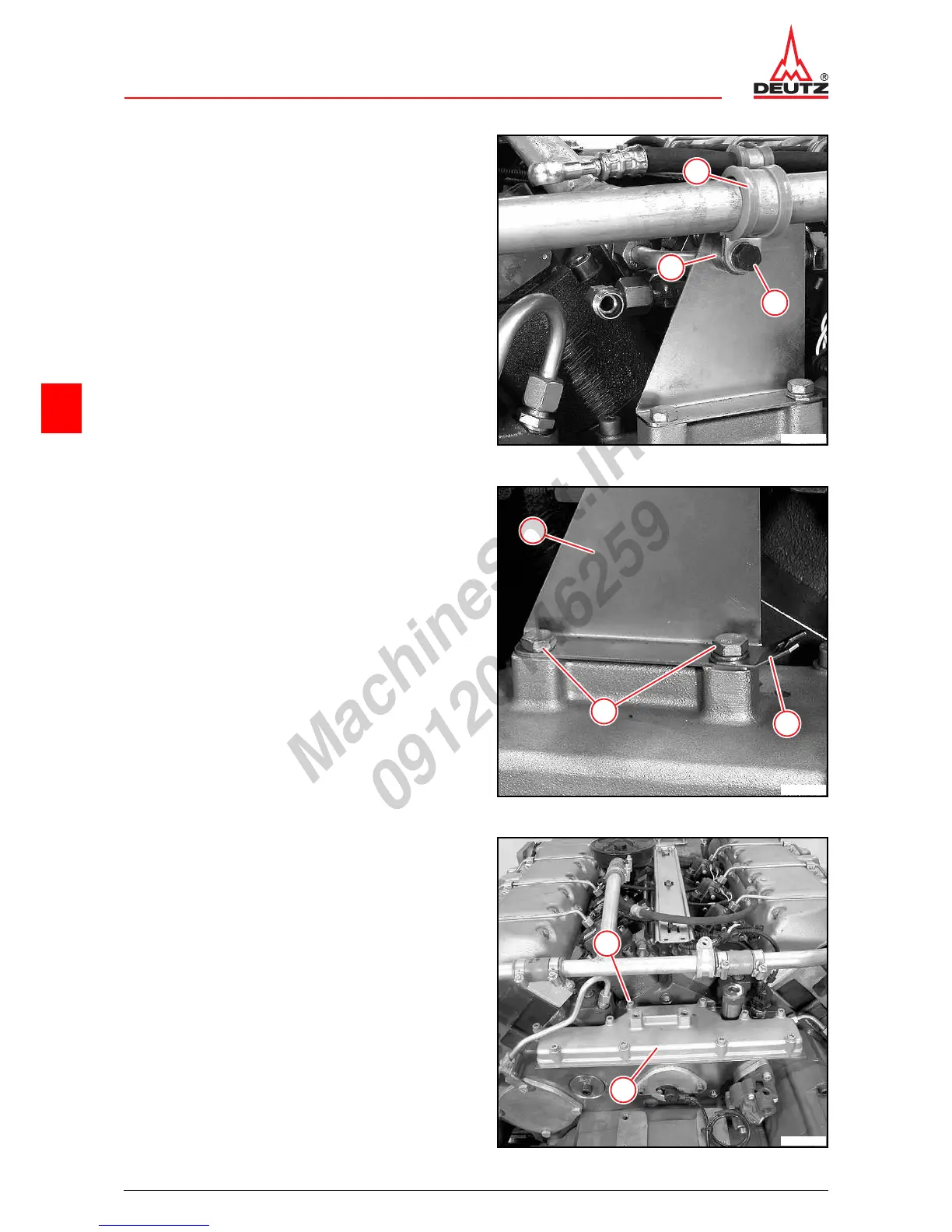

z Unscrew screw (1).
z Remove washer.
z Remove spacing sleeve (2).
z Loosen pipe clamp (3).
3
2
1
© 45775-0
z Unscrew screws (1).
z Remove washer.
z Remove the holder (2).
z Remove holder (3).
1
3
2
© 45776-0
z Unscrew all screws (1).
z Remove gear case cover (2).
z Remove gasket.
2
1
© 42416-2
