TCD 2015 Railway
Engine control
W 04-04-09
© 06/2006 8186-001
4/6
6

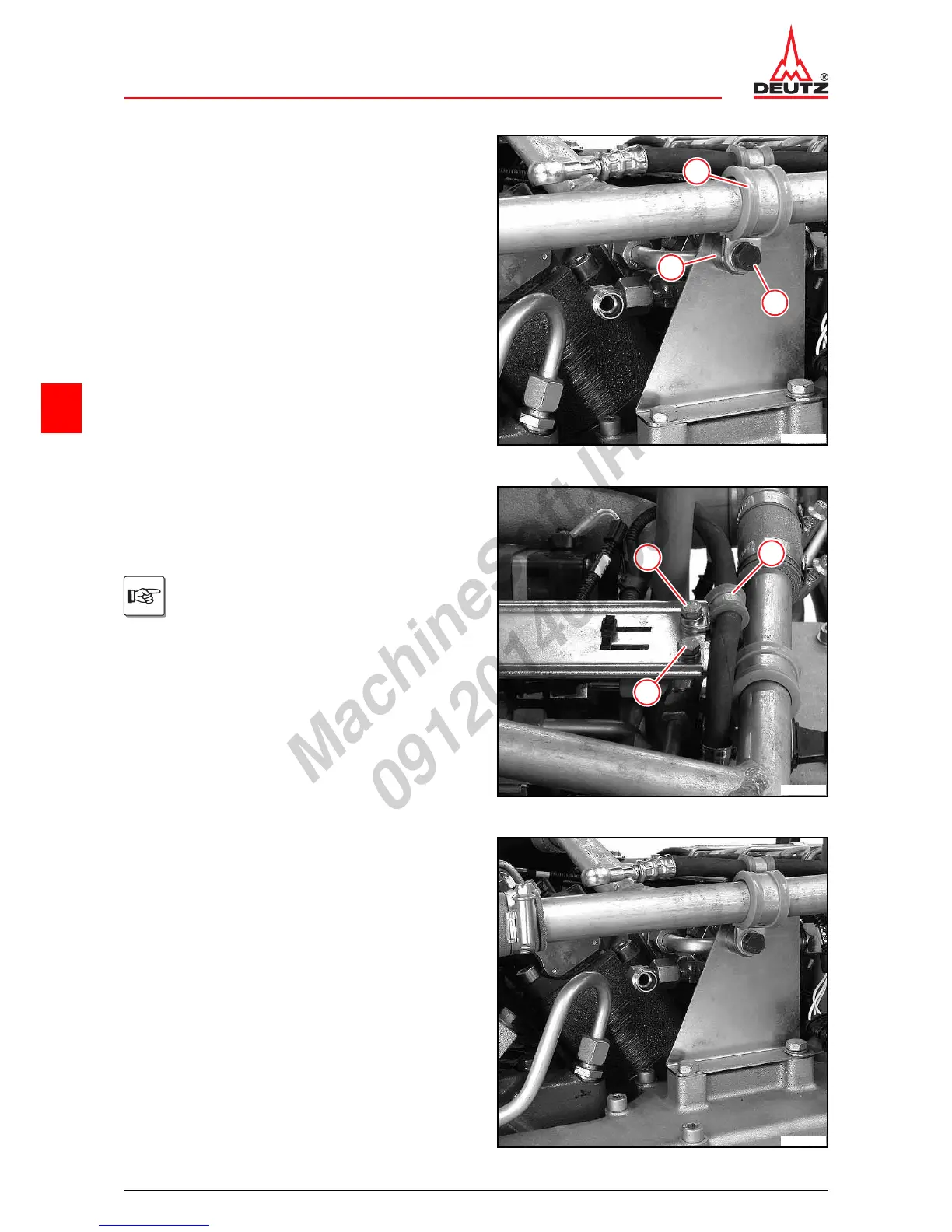

z Position pipe clamp (3).
z Position spacing sleeve (2).
z Mount washer.
z Tighten screw (1).
A12 096
3
2
1
© 45775-0
z Position cable harness rail with cable harness.
z Position pipe clamp (1).
z Mount washers.
z Fasten screws.
z Tighten screws .
A13 094
Note different screw lengths:
M6 x 12 mm (1)
M6 x 16 mm (2)
1
3
2
© 45778-1
z Install fuel pressure holding valve.
W 07-13-01
© 45779-1
